Oasis Scientific | SKU: M-S-PM-40

Vividia PM-40 Handheld USB Pen-Type Digital Focusable Microscope Borescope Endoscope Inspection Camera 4.0mm Diameter

$199.98 USD

Shipping calculated at checkout.

PM-40 Bundle Options

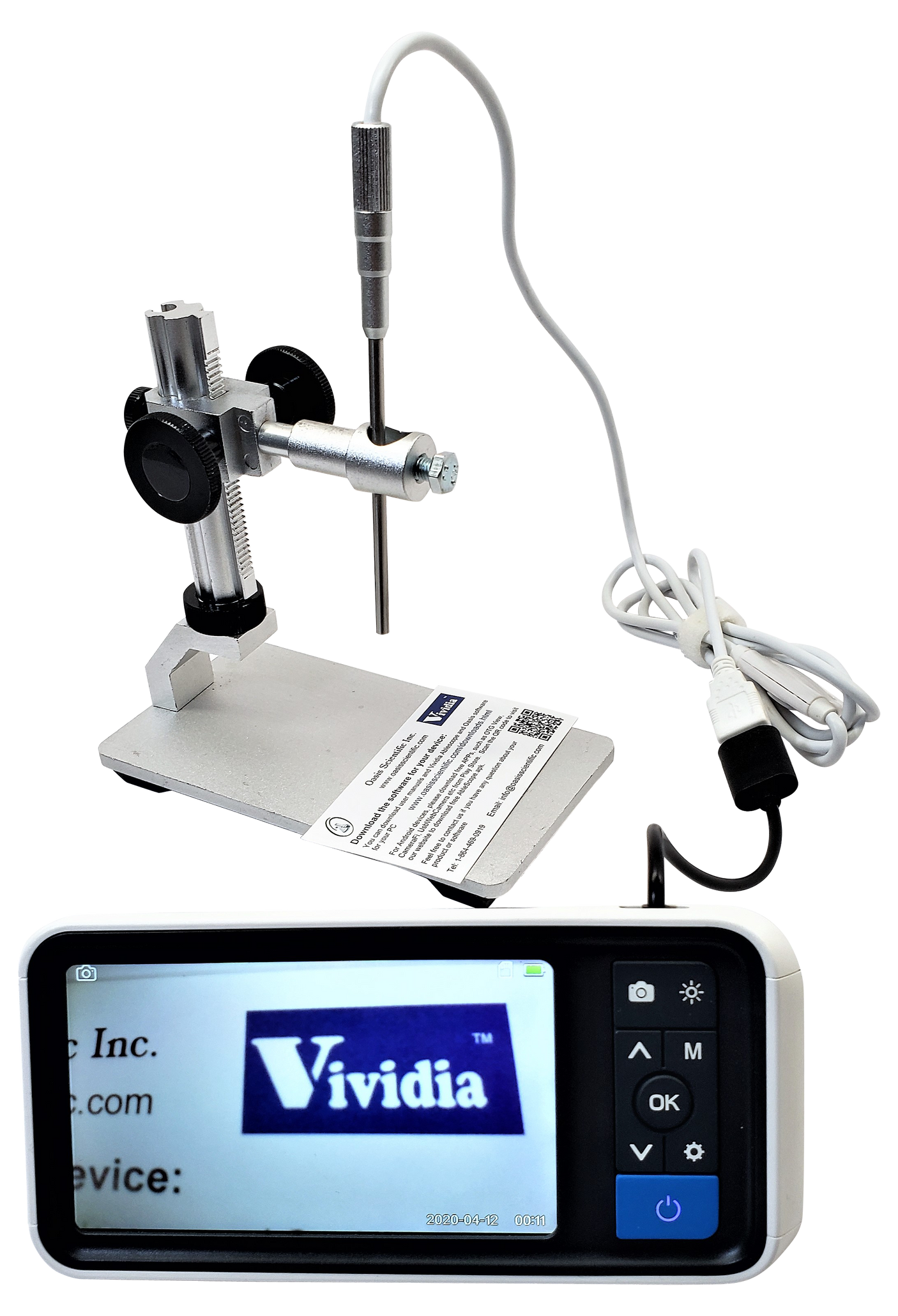

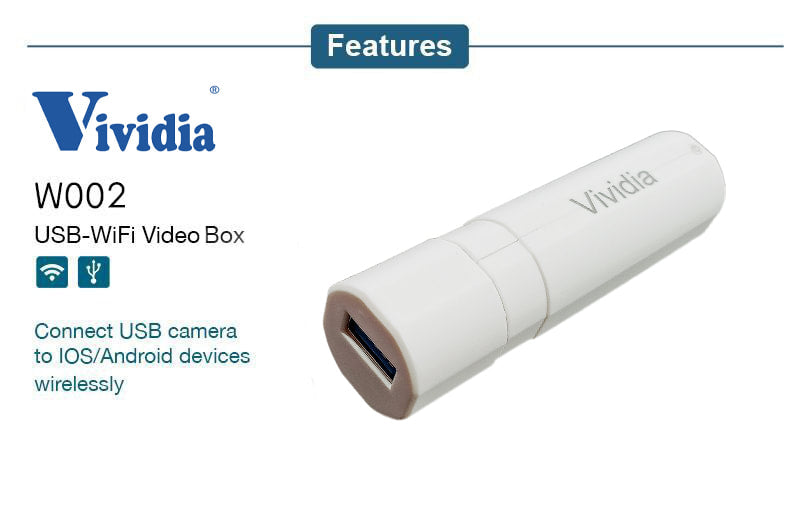

PM-40 with metal stand (Model: PM-40) 4.5" monitor bundle (Model: PM-40M) WiFi box bundle for iPhone iPad (Model: PM-40W) U2i Adapter Bundle for iPhone iPad (ModelL PM-40i)

Delivery and Shipping

Products in stock will ship within 2 days of order placement. All orders in the domestic United States over $75 will receive free shipping, while costs for other areas & purchases under $75 will have shipping calculated by distance and weight.

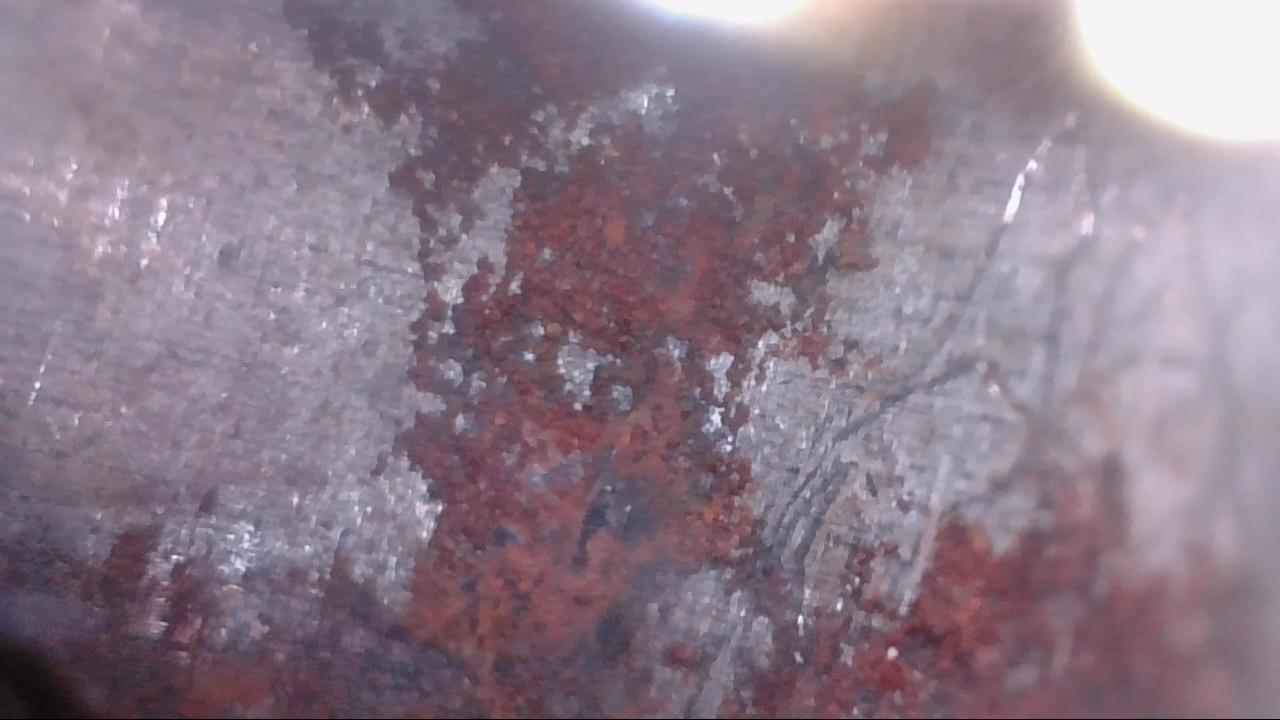

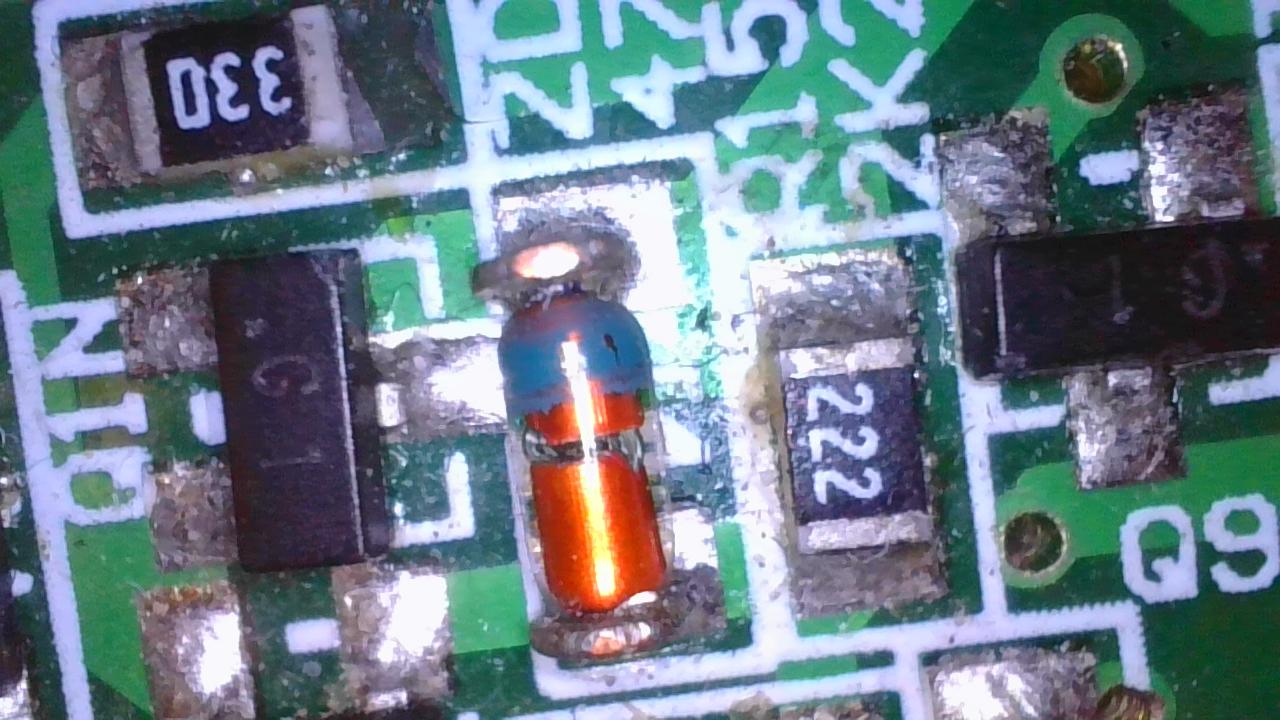

Vividia PM-40 Manual Focus USB Digital Microscope Borescope is both a microscope with maximum magnification of ~150x and a borescope with rigid small diameter of less than 4.0mm. Vividia PM-40 borescope microscope has broad applications in education, industrial quality control and inspection, automotive, aviation, medical and health markets

Key features of PM-40 pen-typ microscope:

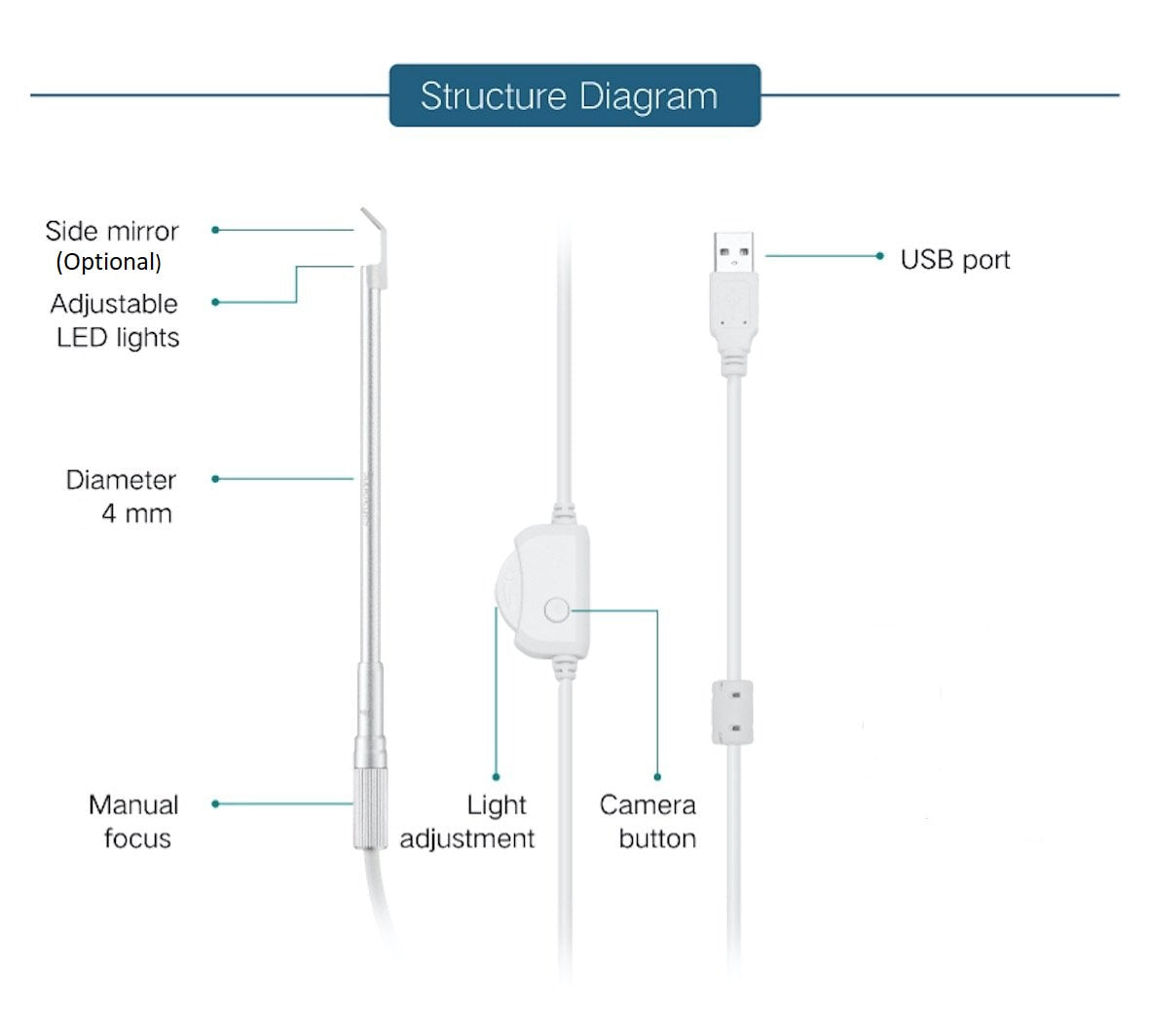

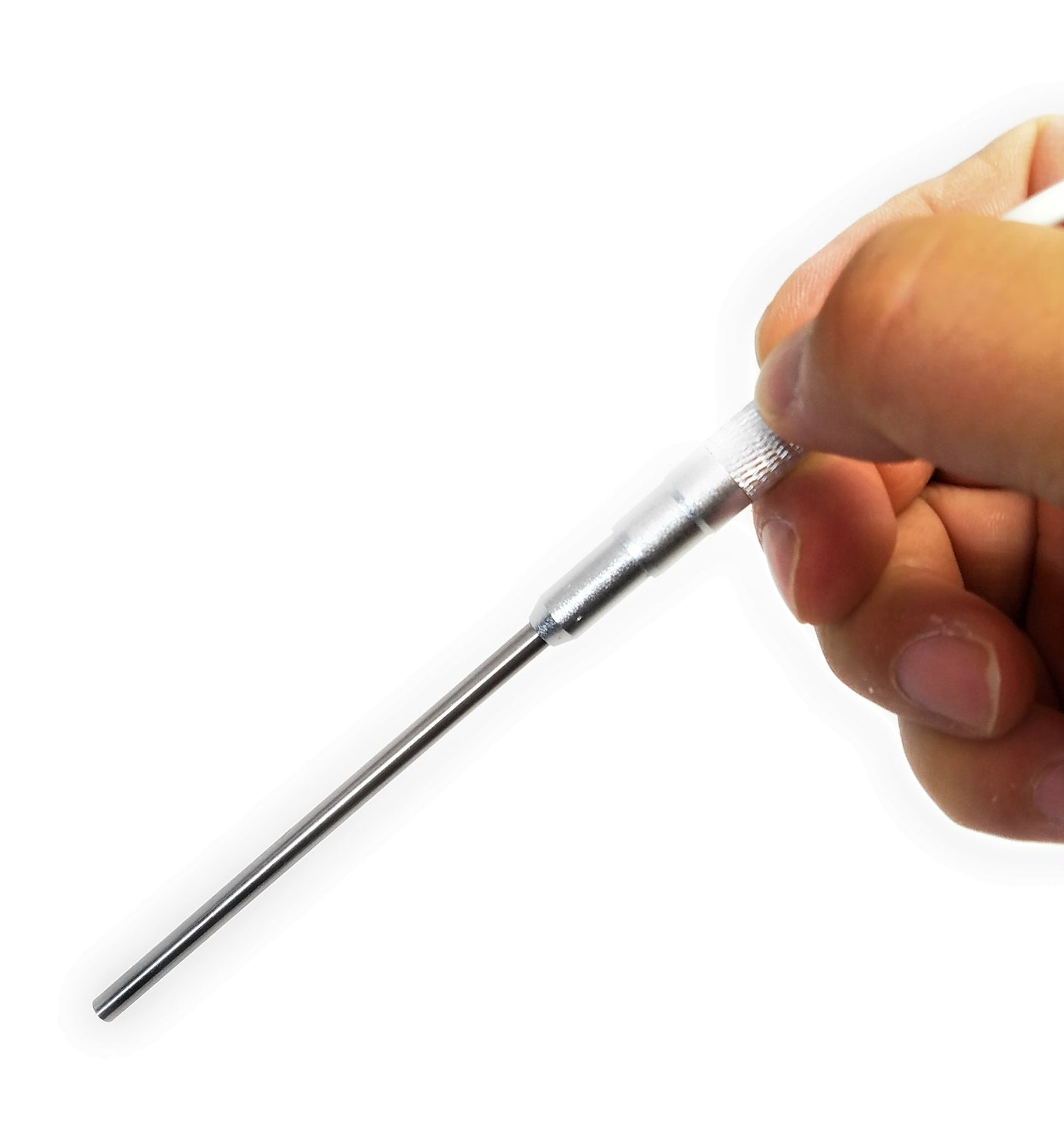

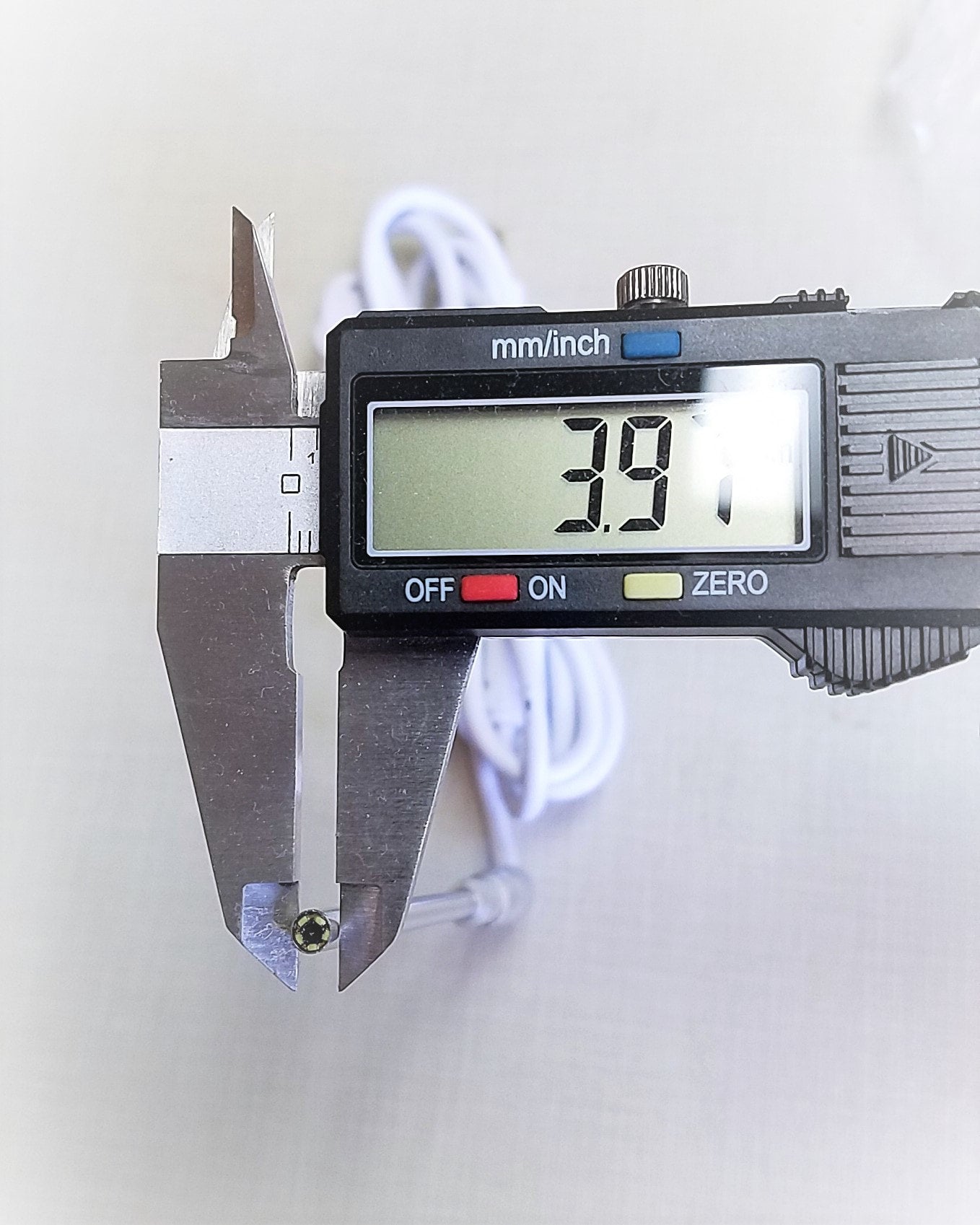

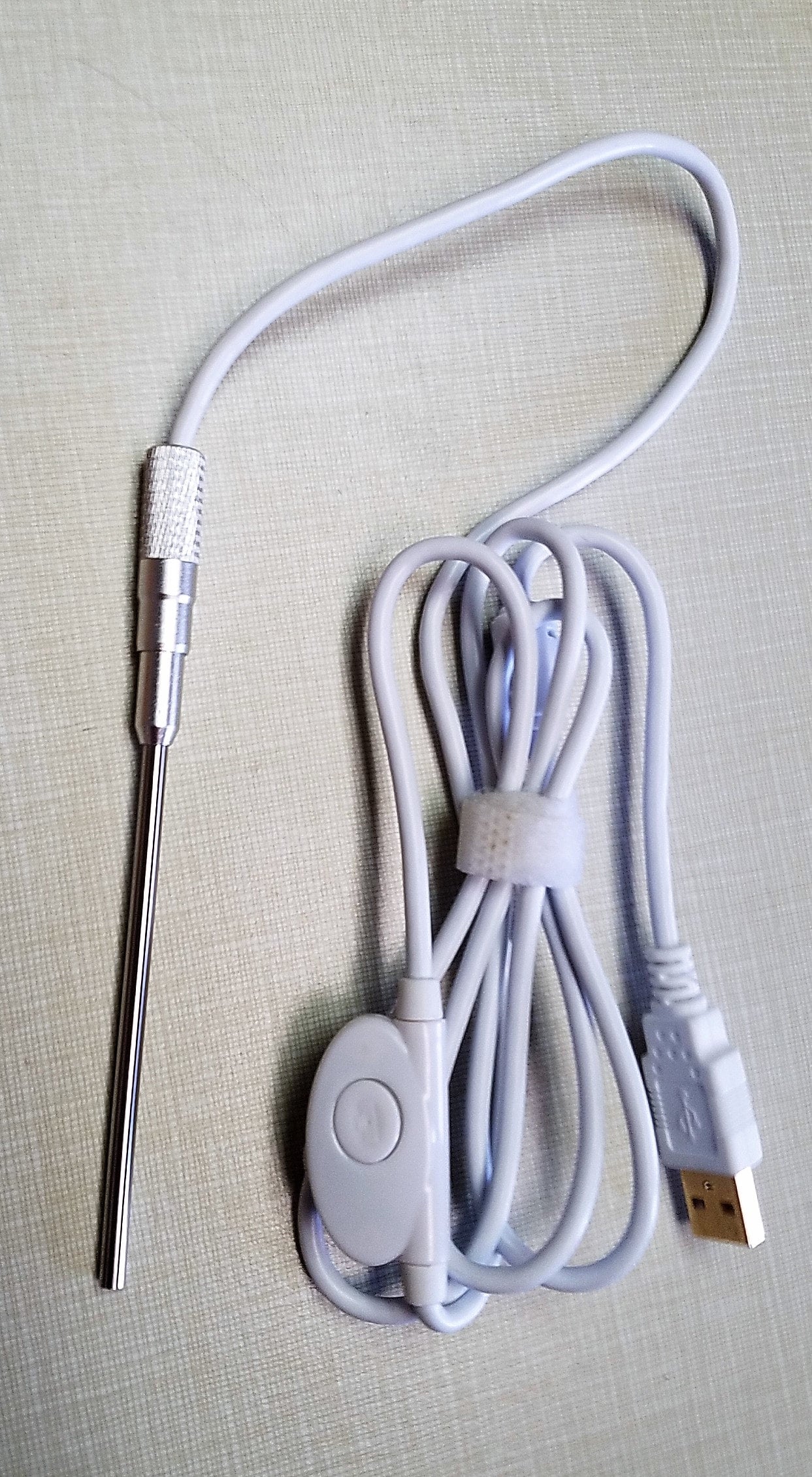

Metal Probe diameter 4mm / 0.16", the whole probe lenght is ~12.5cm / 5"
Camera resolution 1280x 720, HD, CMOS

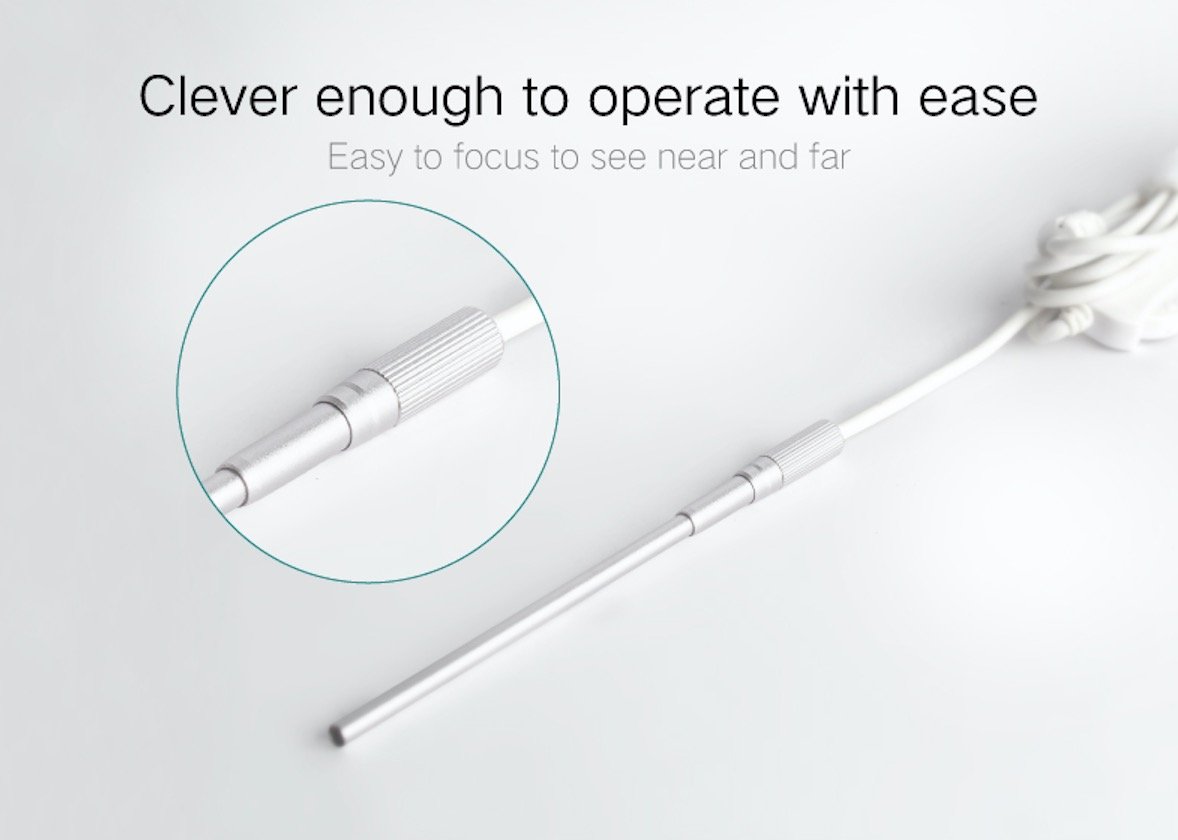

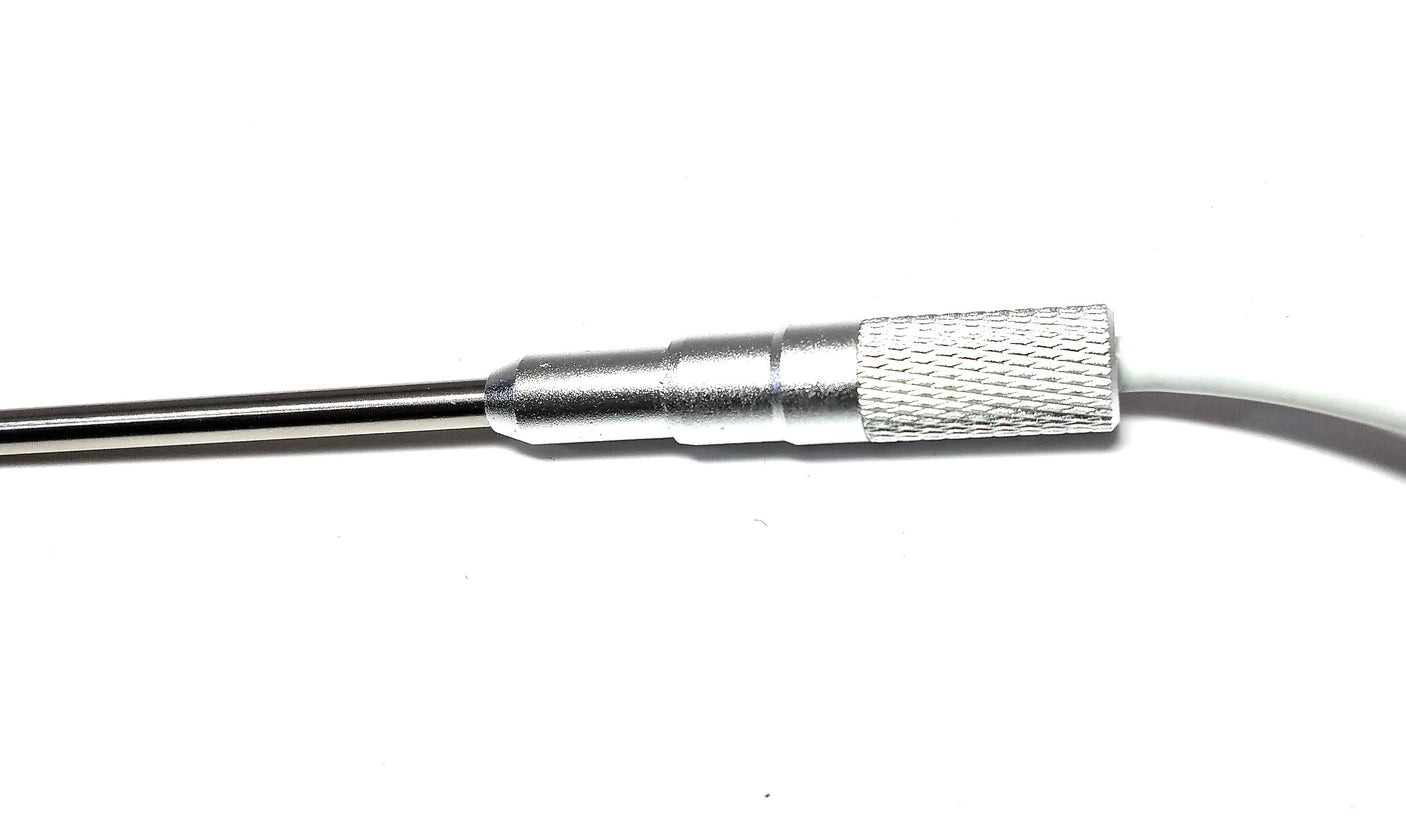

Manual focus with working distance from ~5mm to infinity

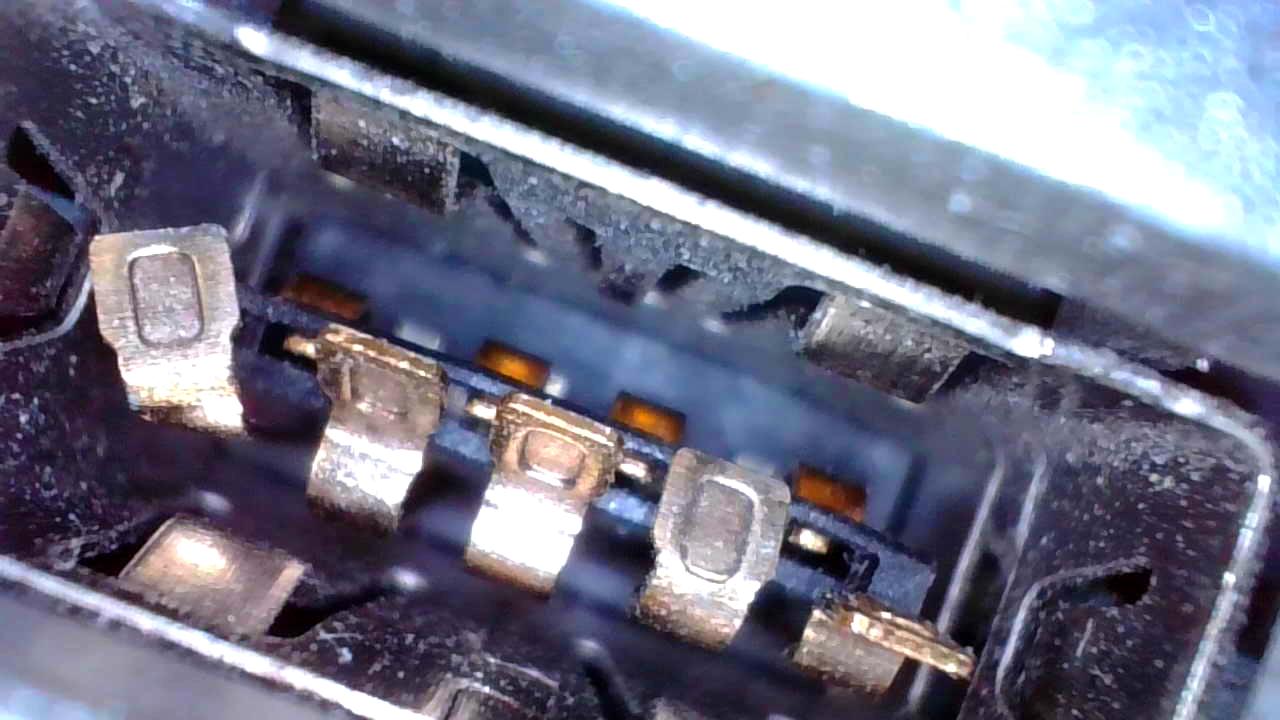

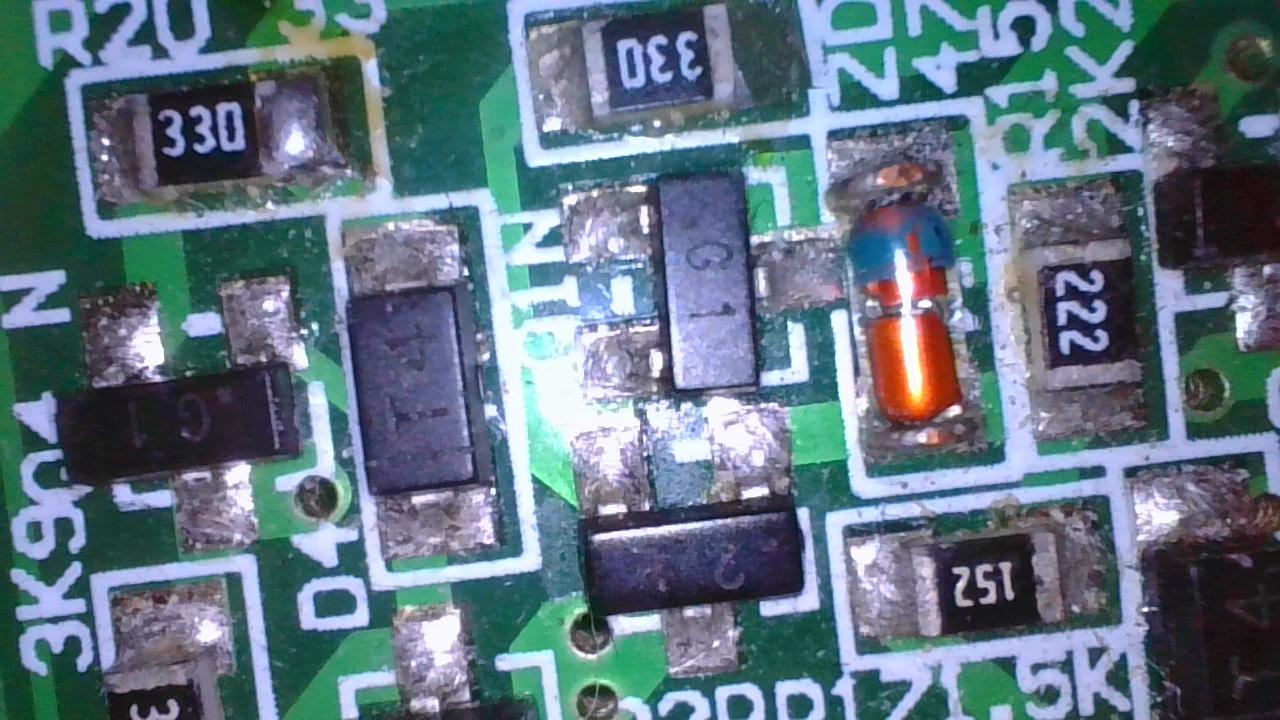

Max. magnification is ~150x
USB output for Windows, Mac, Chromebook and Android

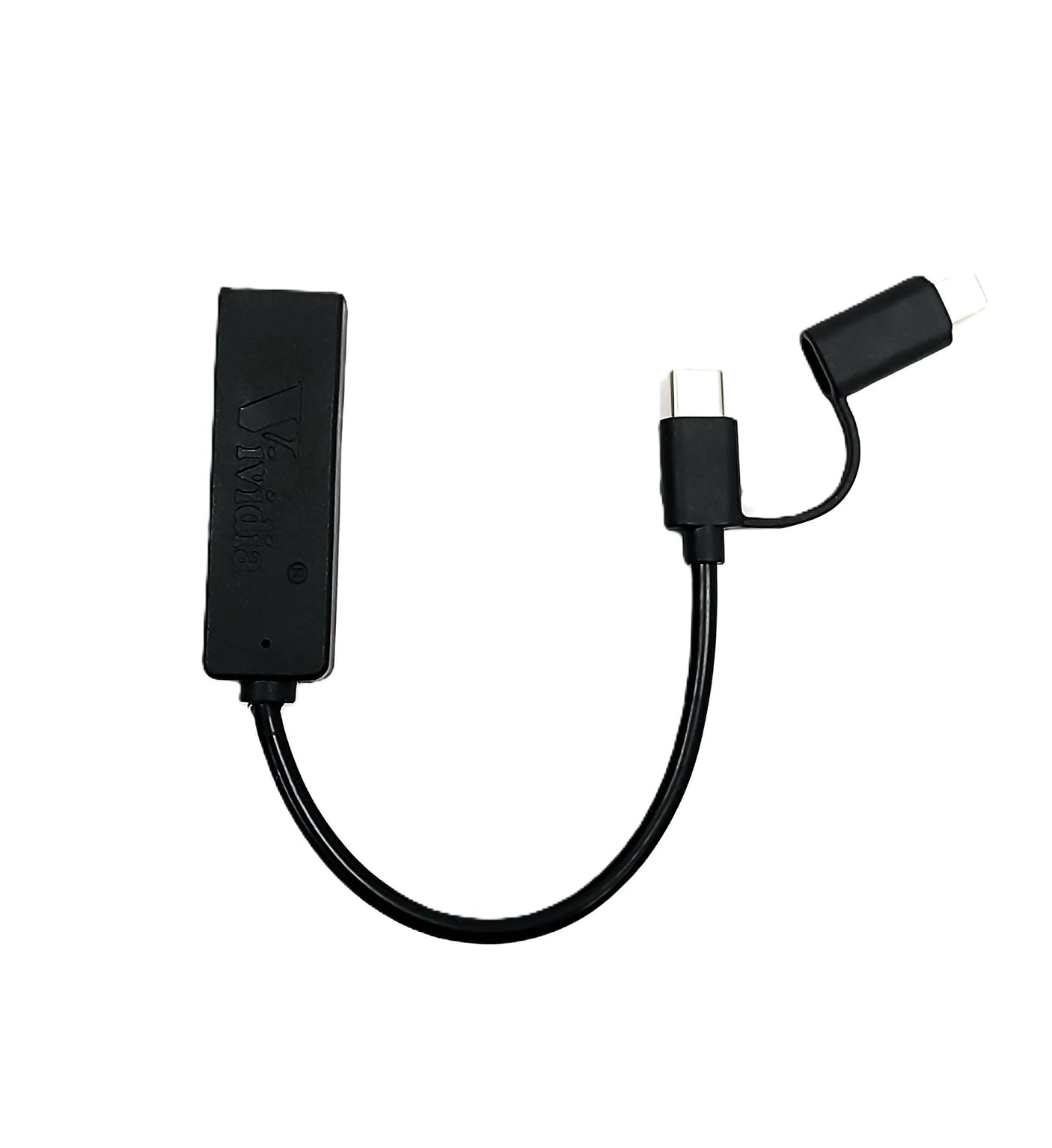

Compatible with iOS devices with a U2i adapter (sold separately)

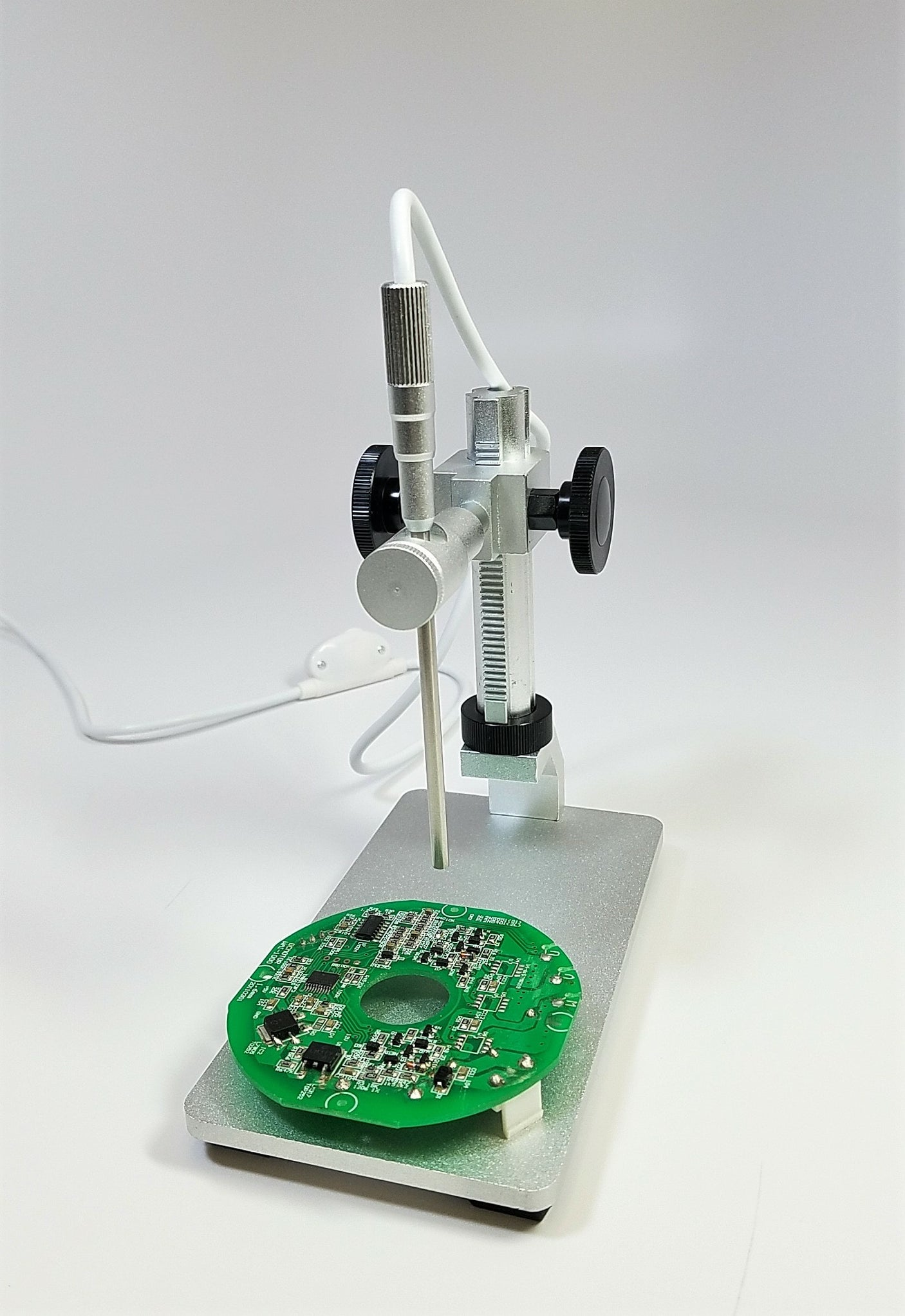

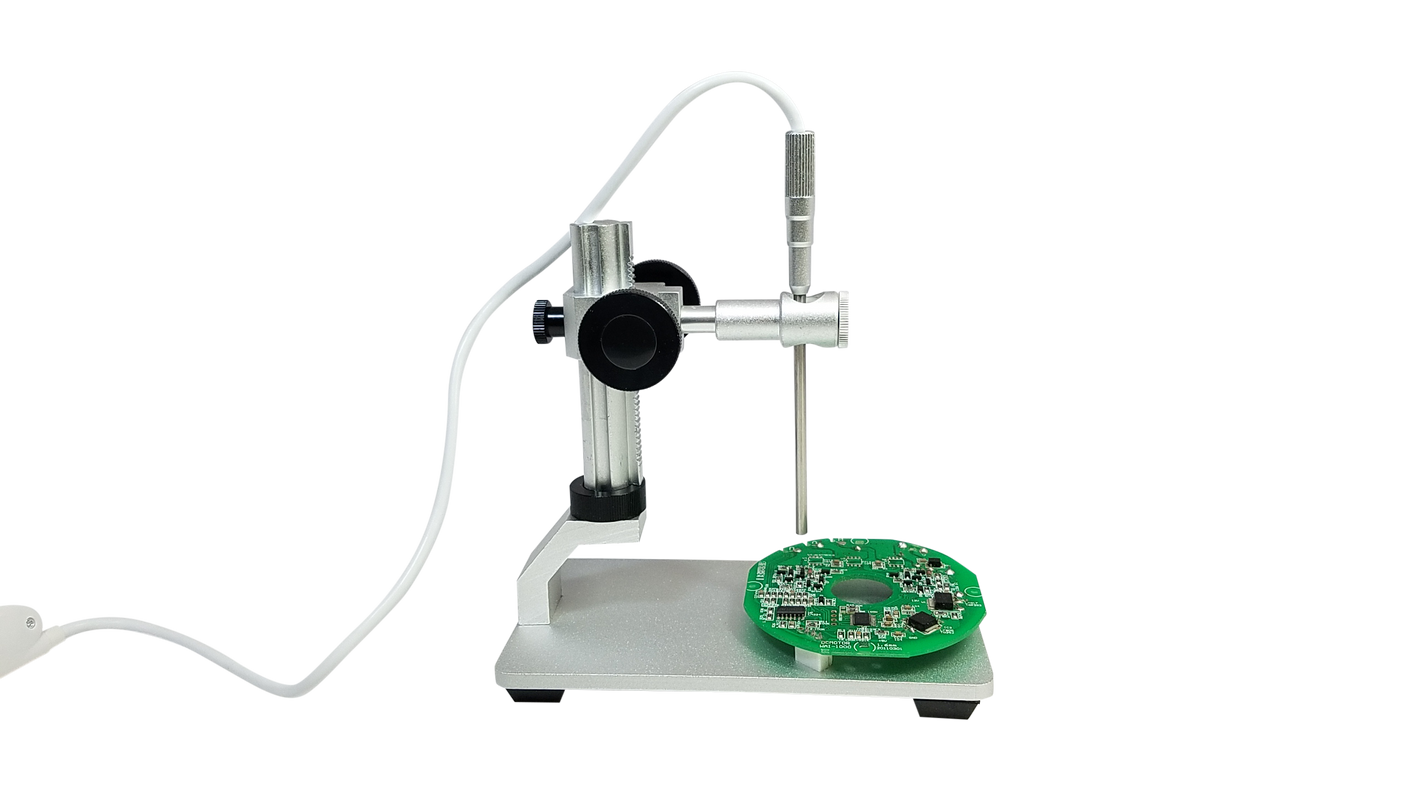

Metal stand included

Free Software for PM-40 USB microscope camera:

Windows 11/10/8/7/xp/vista: "Vividia Ablescope Viewer", "Camera", "Digital Viewer", "Amcap" etc.
MacBook: "Digital Viewer for Mac"; "Photo Booth", "Quick Camera"
Chromebook: "Camera" built-in software
Android: "USB Camera", "Endoscope Camera Pro", "OTG view"
iPhone and iPad (a U2i adapter needed*): "VividiaCam", "Mo-View"

* U2i adapter is a sepatate product, not included in the package.

Other manual focus USB pen-type microscopes / borescopes:

PM-54 with 5.4mm diameter
PM-70 and PM-70S with 7mm diameter (2MP sensor)
PM-110-5MP with 11mm diameter (5MP sensor)
PM-120 and PM-120S with 12mm diameter (2MP sensor)
PM-190 with 19mm diameter and 8MP sensor
