Vividia ET-035M8 Ultra Slim Flexible 0.35mm Diameter Fiberscope 8" Monitor Bundle for Industrial Inspection
Vividia ET-035M8 Ultra Slim Flexible 0.35mm Diameter Fiberscope 8" Monitor Bundle for Industrial Inspection is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Products in stock will ship within 2 days of order placement. All orders in the domestic United States over $75 will receive free shipping, while costs for other areas & purchases under $75 will have shipping calculated by distance and weight.
Vividia ET-035M8 Ultra Slim Flexible 0.35mm Diameter Fiberscope 8&q...
Vividia ET-035M8 Ultra Slim Flexible 0.35mm Diameter Fiberscope 8" Monitor Bundle for Industrial Inspection is backordered and will ship as soon as it is back in stock.

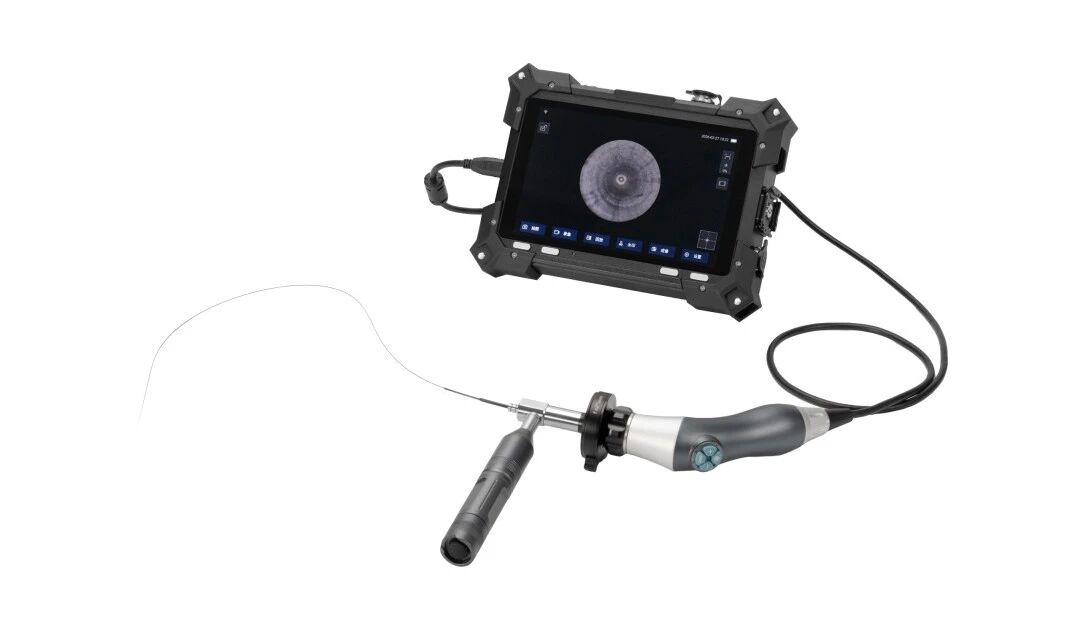

ET-035M8 Fiberscope 8" Monitor Bundle includes:
- ET-035 flexible 0.35mm diameter fiberscope
- Portable light source for fiberscope
- Eyepiece camera adapter
- Endoscope eyepiece FHD camera
- 8 inch touchscreen display monitor
Features & Advantages of ET-035M8 fiberscope bundle:
- Ultra slim optical fiber fiberscope with 0.35mm / 0.014"
- Flexible probe 60cm / 2ft long
- 5,000 optical fibers resolution with near focus
- IP67 waterproof for the probe
- Bright lighting source
- Large touchscreen monitor with FHD screen resolution with HDMI output and rechargeble battery
Applications of the ultra slim fiberscope:
- Equipment internal cavity inspection
- Casting part inspection
- Workpiece inspeciton
- Cooling hole or cross hole inspection
Limitation of the ultra slim fiberscope:
- The scope resolution (5,000 fibers total) is not high. When you magnify the fiberscope tip, the individual optical fibers (pixel) will show up.
- The ultra thin probe (0.35mm diameter) is not very sturdy. Easy to be damaged by physical forces, such as impact or folding.
- The cost to replace a new optical fiber probe is high. And it is almost impossible to repair a damaged probe.
