Vividia DPC-4810 Portable Manhole Septic Pipeline Telescopic Pole Inspection Camera with Tilt Zoom 2MP Camera Head Touchscreen Monitor Reporting Software

DPC-4810 telescopic pole pipeline manhole inspection camera:

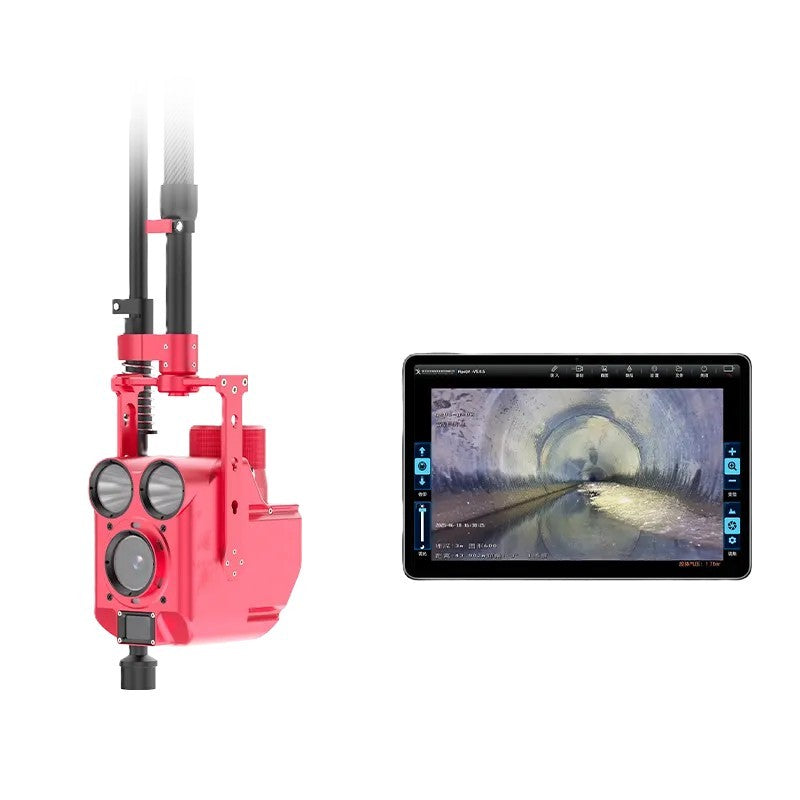

Main Control Tablet:

1. Processing Capability: 4GB or higher RAM;

2. Storage Capacity: 128GB or higher internal storage;

3. Display: 10.1-inch capacitive screen with 1920 * 1200 resolution;

4. Control: Wireless control;

5. Operation: Touch control for focus, zoom, primary/auxiliary light brightness, camera rotation, etc.;

6. Image Capture: Quick capture and save defect images;

7. Playback: Browse and replay video files or images;

8. Text Input: Input text via soft keyboard, overlaid and saved in video footage;

9. Battery Life: Continuous operation ≥8 hours, with battery level indicator;

10. Interface: Type-C port;

11. Dimensions: 240mm160mm8mm;

12. Weight: Approx. 400g;

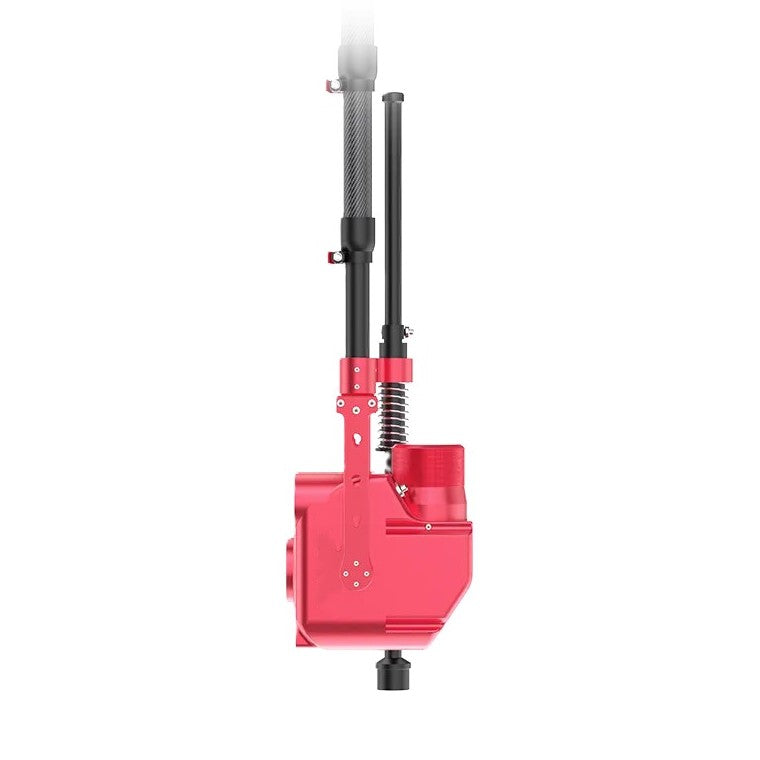

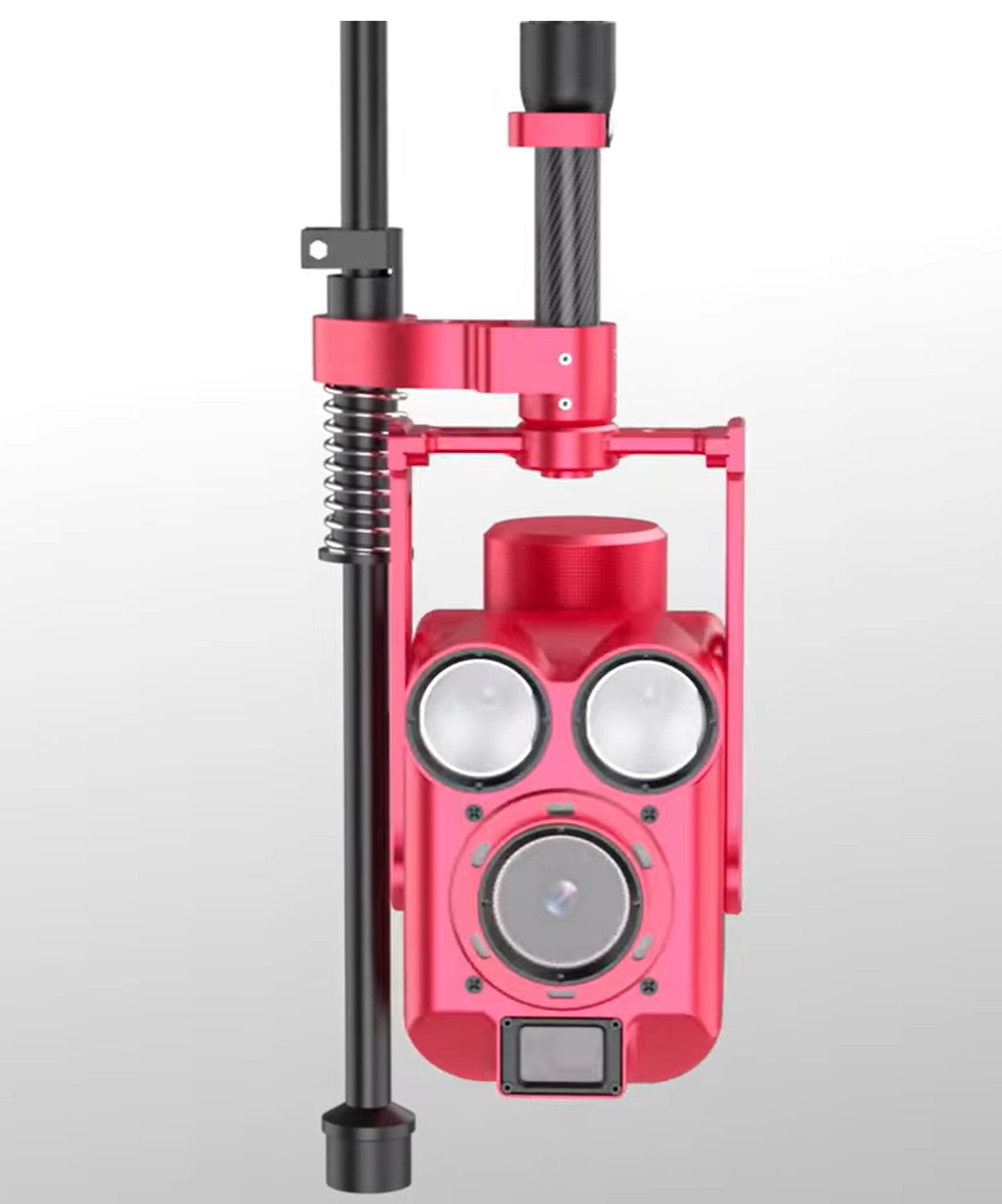

Camera Head:

1. Applicable Environment: Urban stormwater, sewage, combined pipelines, water supply, industrial wastewater pipelines, etc.;

2. Applicable Pipe Diameter: 100mm~2000mm;

3. Operating Temperature: -10℃~50℃;

4. Light Source Follow: Light source moves with camera probe, upward rotation 60°, downward rotation 30°;

5. Pressure Indicator: Green light for normal pressure (1.1bar≤P<1.7bar); red light for high/low pressure (P≥1.7bar or P<1.1bar);

6. Lighting: Primary 10W LED with spotlight cup, auxiliary 6x3W LEDs with floodlight design, independent and stepless adjustment;

7. Image Sensor: Color 1/2.8", progressive scan CMOS;

8. Image Resolution: PAL standard, 1920 * 1080, 2 megapixels;

9. Viewing Angle: Horizontal 58.4° (wide angle), 2.3° (telephoto);

10. Zoom & Focus: 30x optical zoom, 12x digital zoom, auto or manual focus;

11. Sensitivity (Minimum Illumination): 0.01LX;

12. Adaptability: One-touch defogging, one-touch probe centering;

13. Waterproof Rating: IP68;

14. Weight: 2.45kg;

Laser Distance Measurement (built-in camera head):

1. Measurement Accuracy: ±0.001m;

2. Measurement Range: 0.2m~80m;

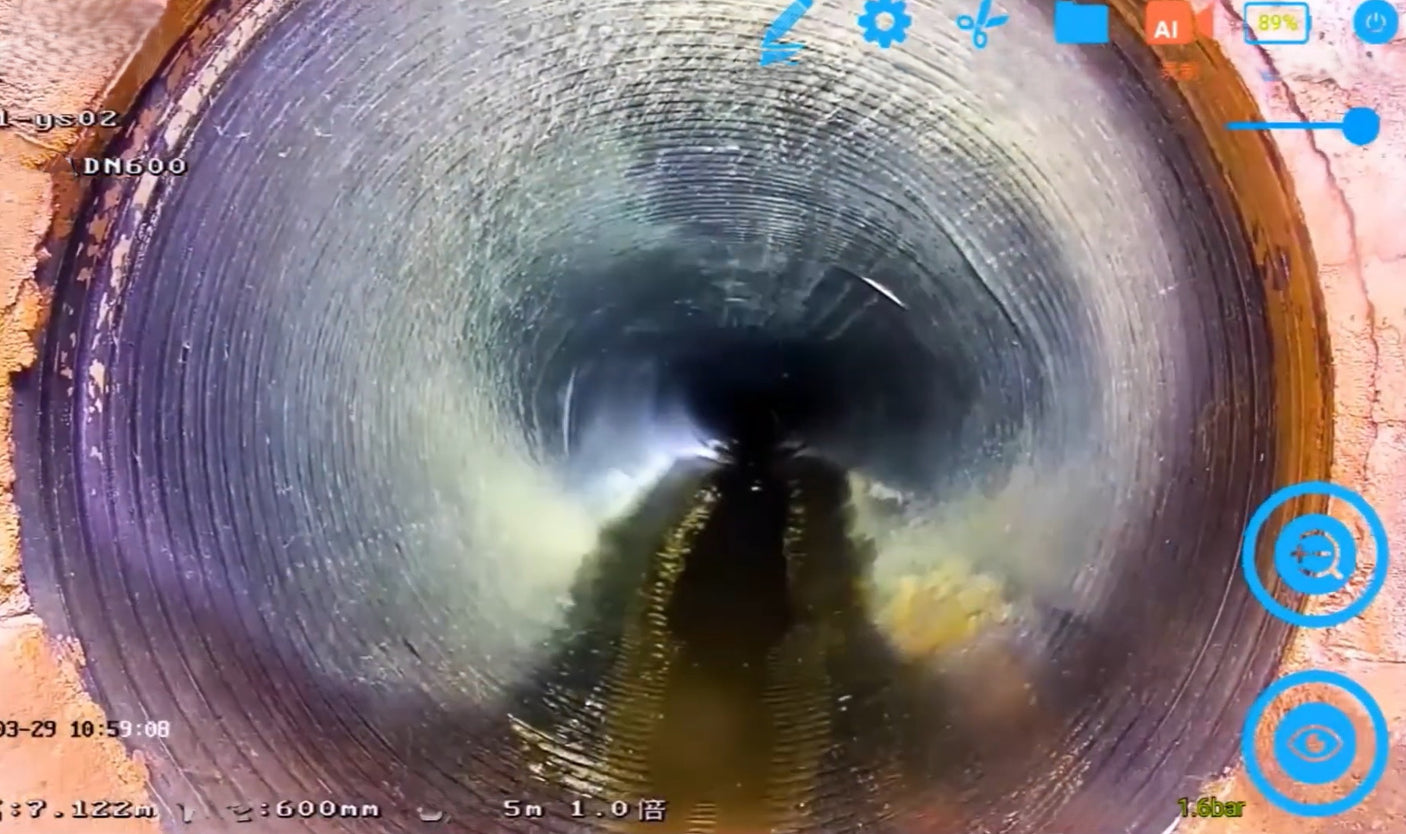

3. Real-time high-speed measurement, results displayed in video footage;

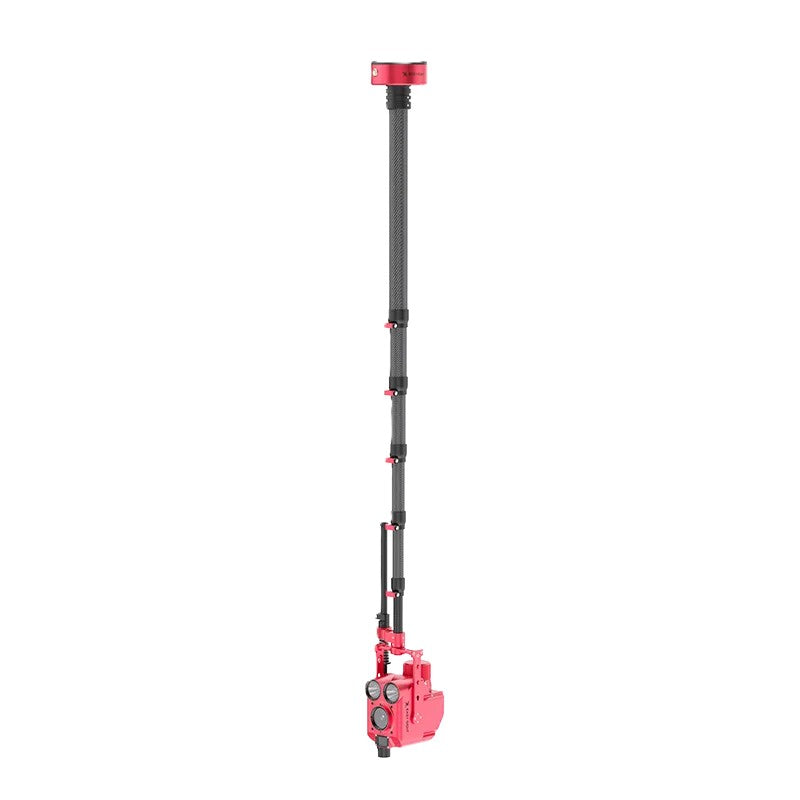

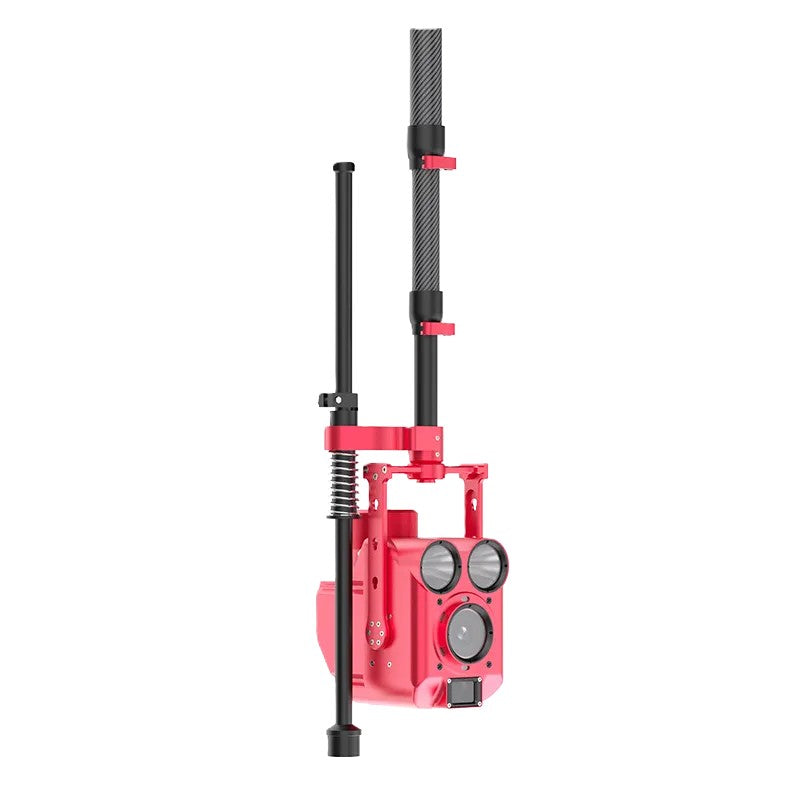

Telescopic Pole:

1. Carbon fiber material (10x compressive strength of ordinary steel);

2. Nested telescopic design, reinforced joints, fully extended length 4.8m;

3. Single extension rod: 0.8m retracted, 1.5m extended. Quick-connect design, extendable up to 12m with included extension poles

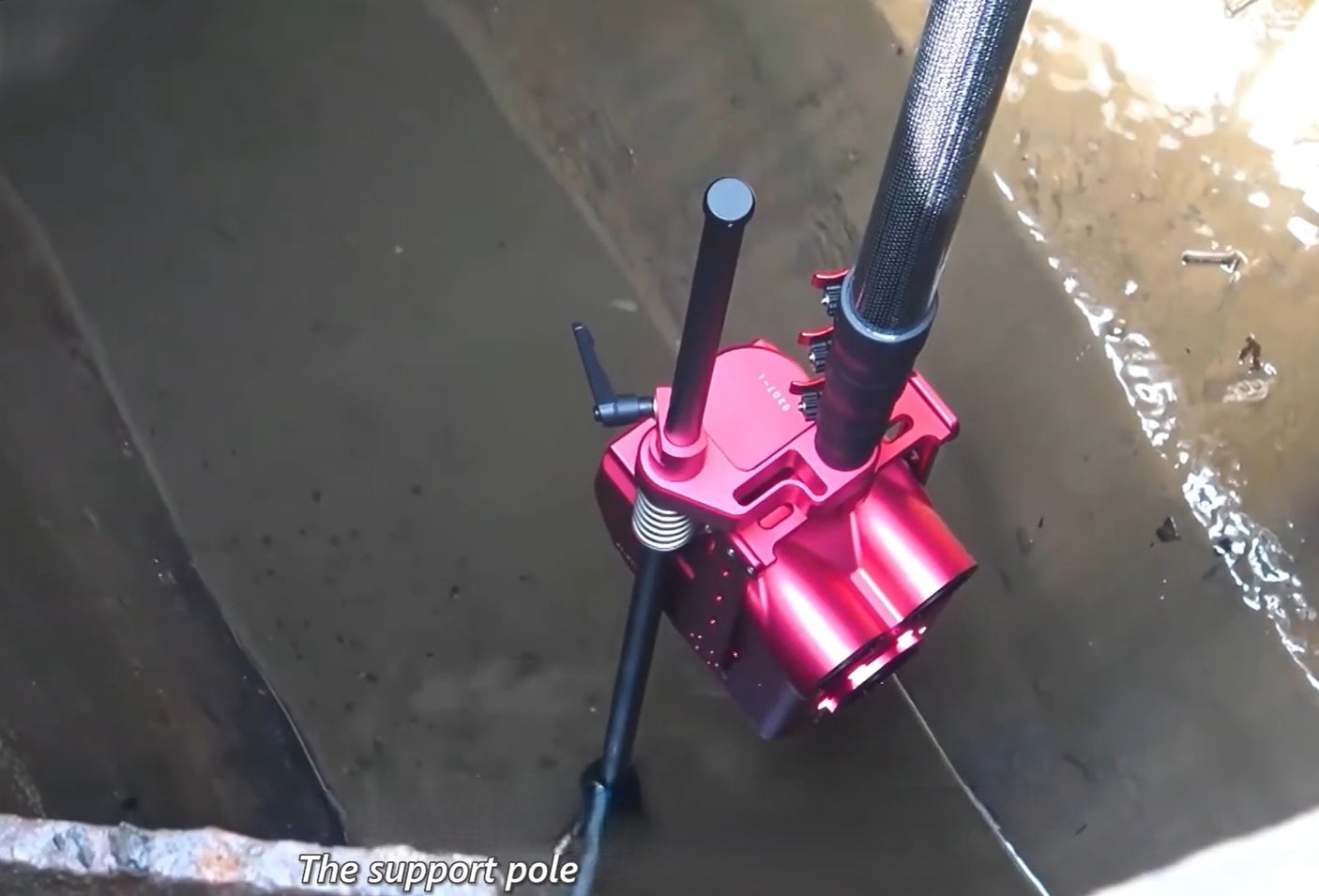

Support Rod:

1. Lightweight material, length 0.8m;

2. Integrated micro-adjustment spring device for probe height, rubber buffer ball at end;

3. Unique detachable design (can be directly packed into the case);

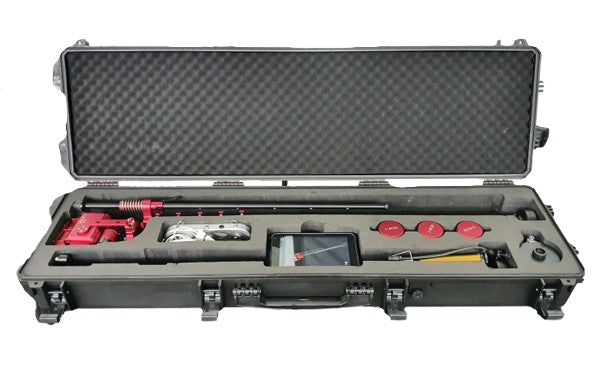

DPC-4810 telescopic inspection camera system:

• 10" control tablet
• Telescopic pole and extension pole
• Support rod
• Battery for camera head
• Camera head with lighting and laser measurement
• Accessories: spare batteries; air pump etc.
• Carry case
• User manual

• Septic tanks and residential pipeline inspection
• Sewer and stormwater pipeline inspection
• Industrial wastewater pipelines and water supply systems
• Urban drainage maintenance and assessment
• Industrial containers and chemical tank inspections
• Any pipeline environment requiring precise quickview zoom inspection camera capabilities
