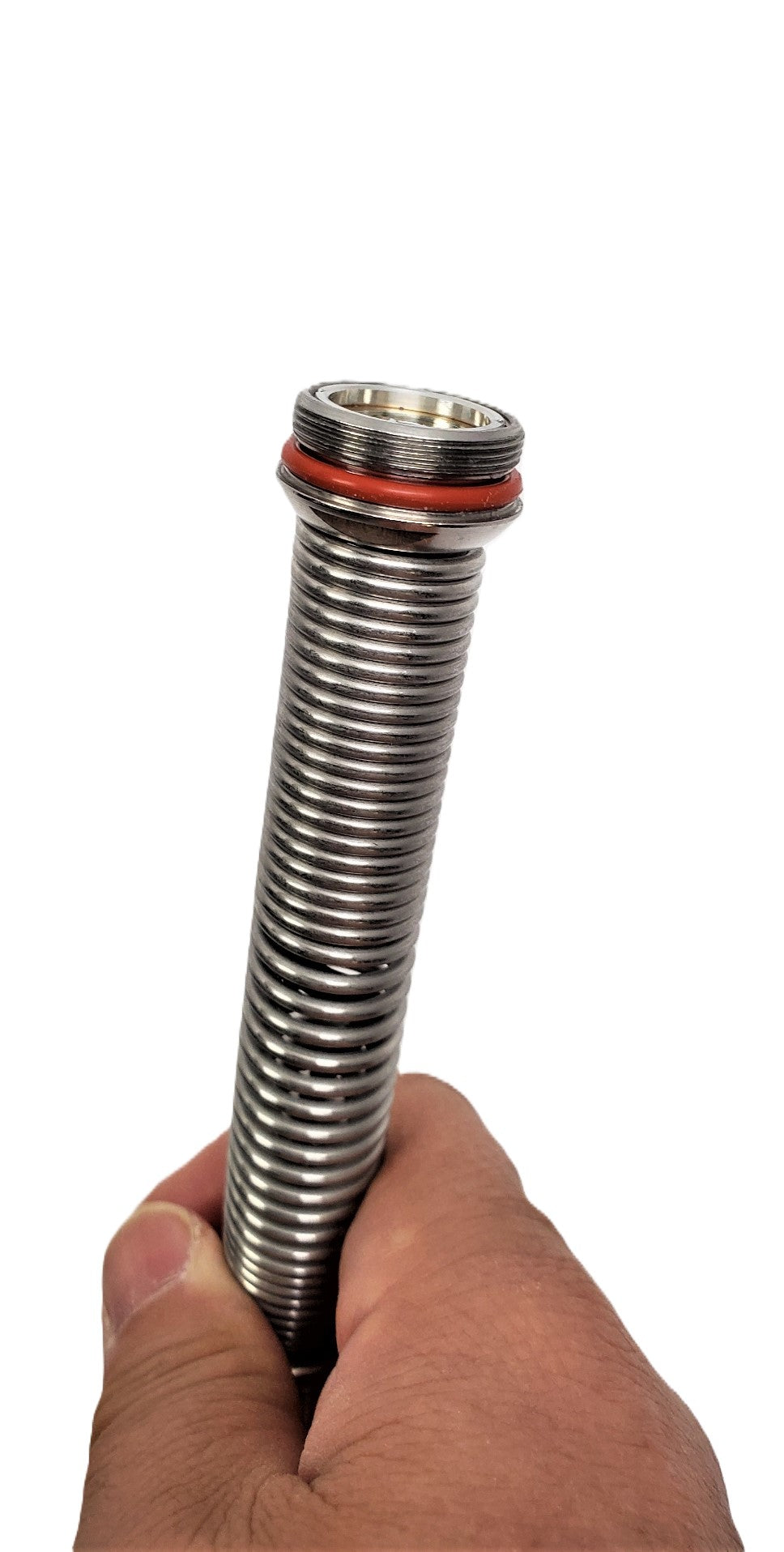

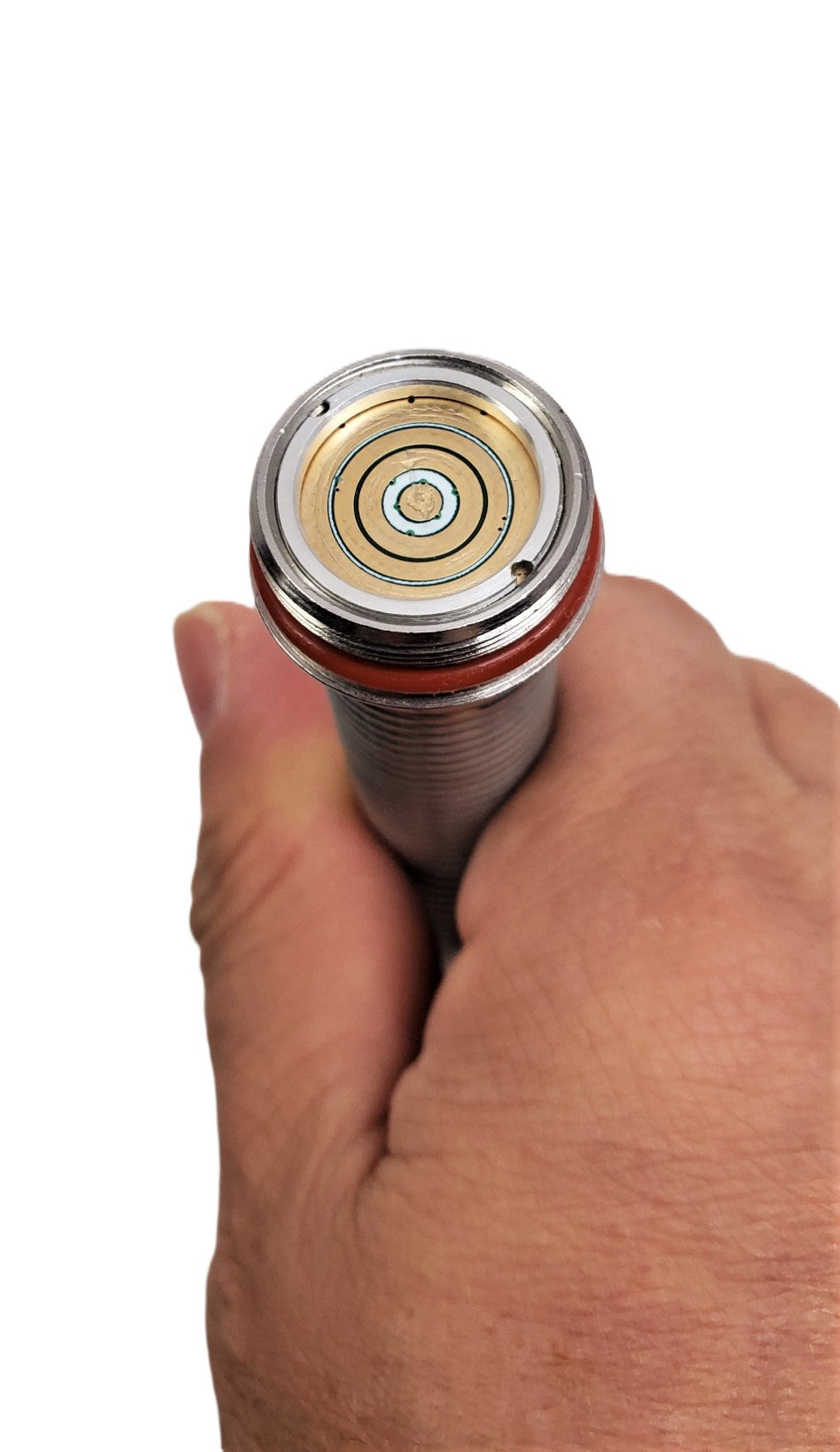

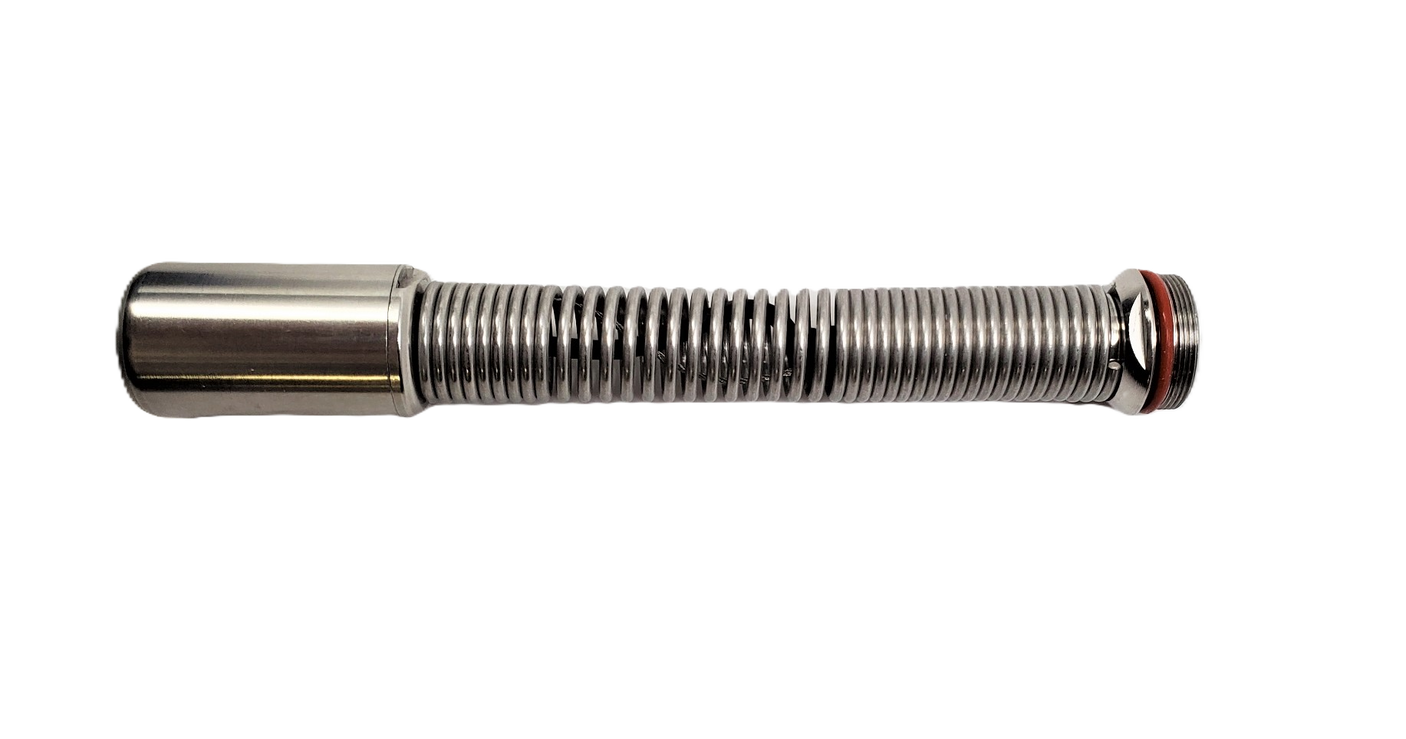

Vividia C23MTS-HD 23mm Diameter Waterproof Self-Leveling FHD 1080P Inspection Camera with Built-in 512Hz Sonde Transmitter for VS-749 and VS-749B and VS-739

Model: C23MTS-HD

This is the same camera head as model C23MTS, only this is new FHD 1080P version.

Camera head resolution: 1920x1080 ( Note: C23MTS camera head resolution is 480TVL)

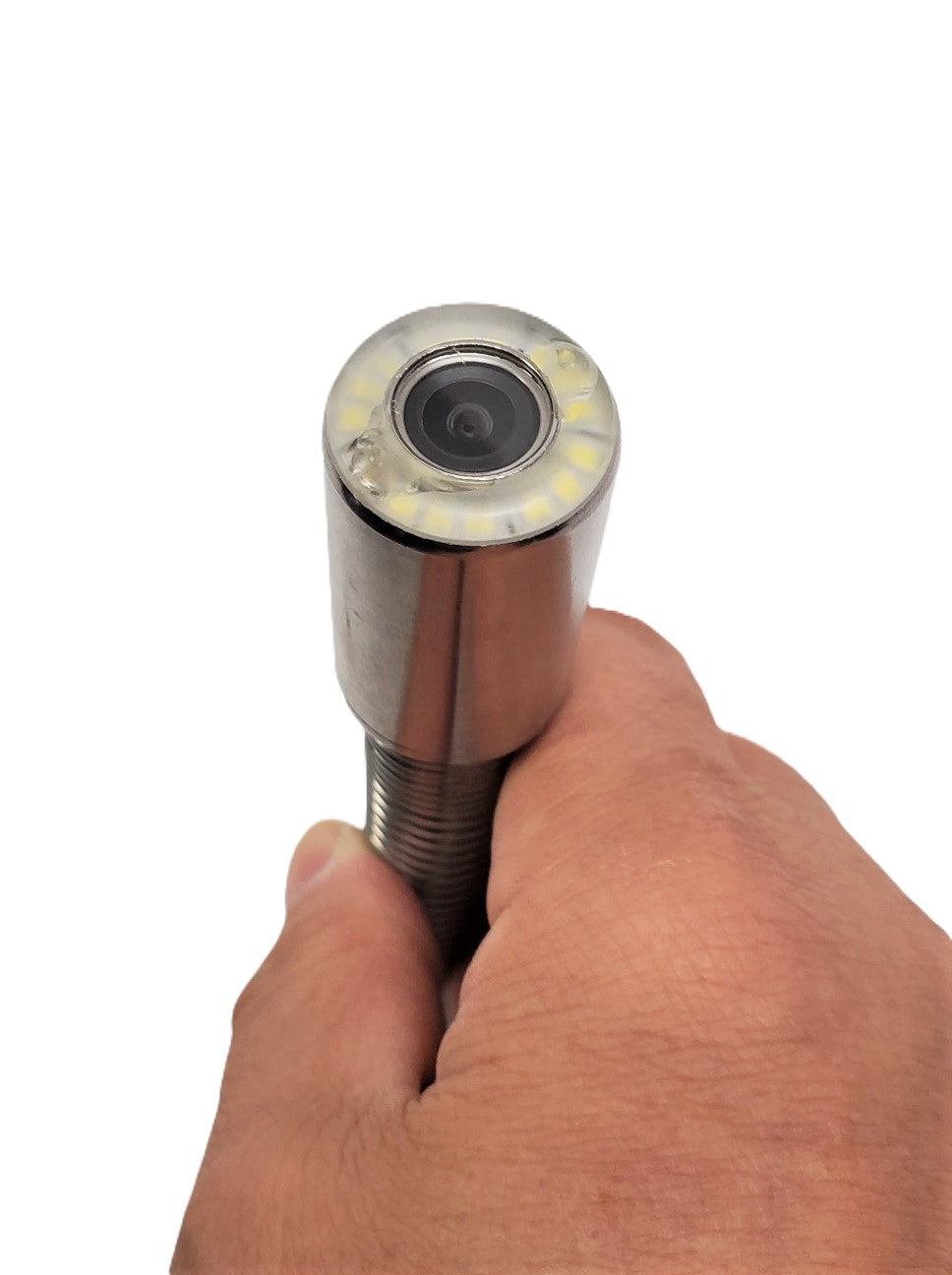

This replacement 23mm camera is for VS-719, VS-719plus, VS-749, VS-749plus and VS-749B pipe sewer inspection camera system. The camera is waterproof IP68. There are 12 LED lights on the front of the camera.

This special camera has built-in 512Hz sonde for locator and self-leveling feature.

Before placing order for this camera head, C23MTS-HD, make sure that your pipe camera system is compatible with the HD version of this camera head.

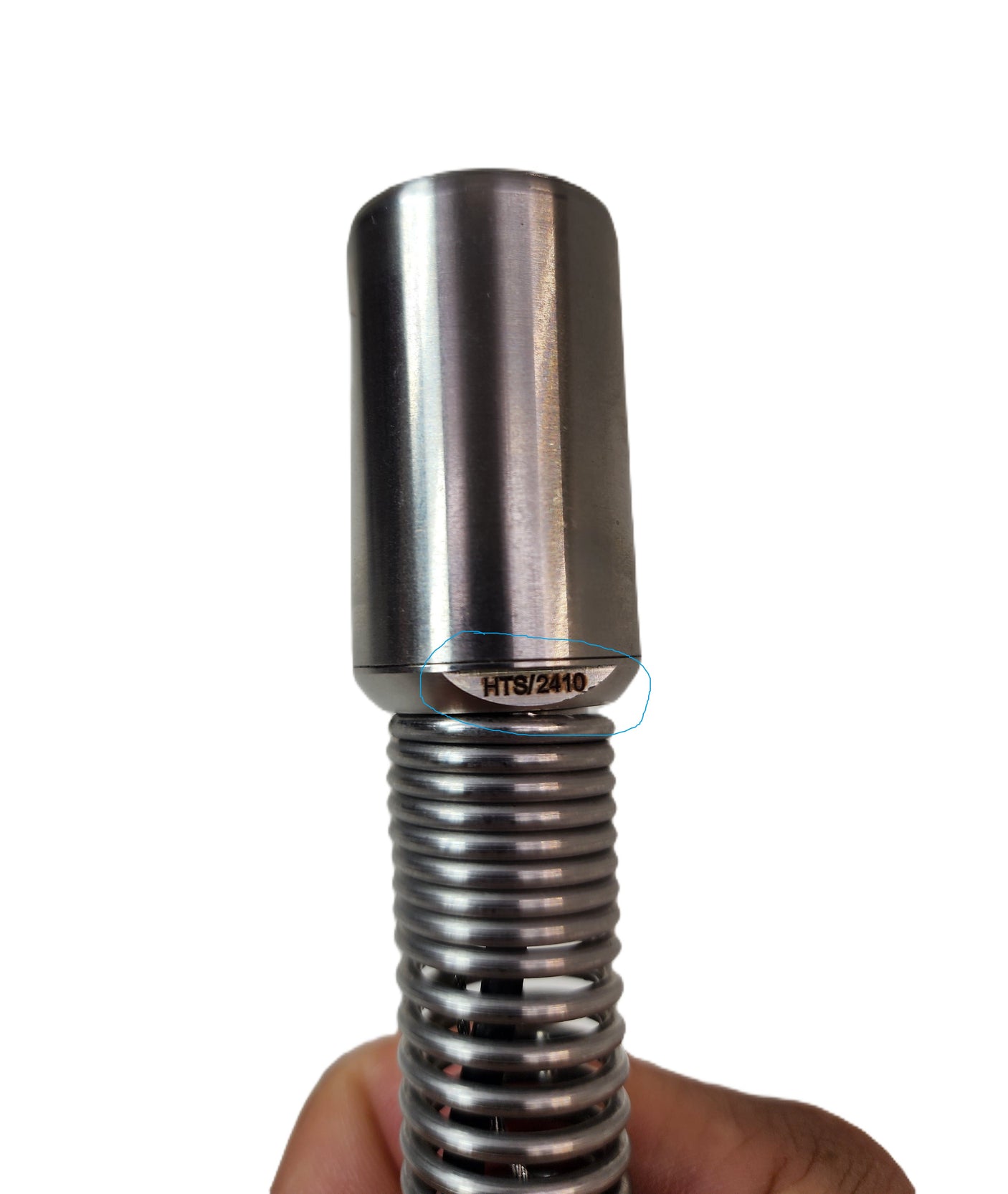

If your current camera head is a HD version, you can see the marking on the camera head as "H*****". The 1st letter should be H. Another way is to check the settings on the monitor. If the camera installed is a HD, the settings of the camera will state HD.

Other 23mm camera heads:

• C23MTS           480TVL      self-leveling and built-in 512Hz sonder; compatible with all years models, old and new
• C23MTS-HD    1920x1080 self-leveling and built-in 512Hz sonder; only compatible with the new pipe camera models after 2022.
• C23MN0          480TVL       standard; compatible with all models (old and new)

Meaning of the model name:  C23MTS; C23MTS-HD C23MN0; C23MN0; C23MNS;

• C: camera head
• 23mm diameter
• M: mm unit for diameter
• T: transmitter for locating purpose
• S: self-leveling
• N: no transmission
• 0: no self-leveling
• HD: for HD resolution
