Oasis Scientific  |  SKU: M-M-MS220-1611

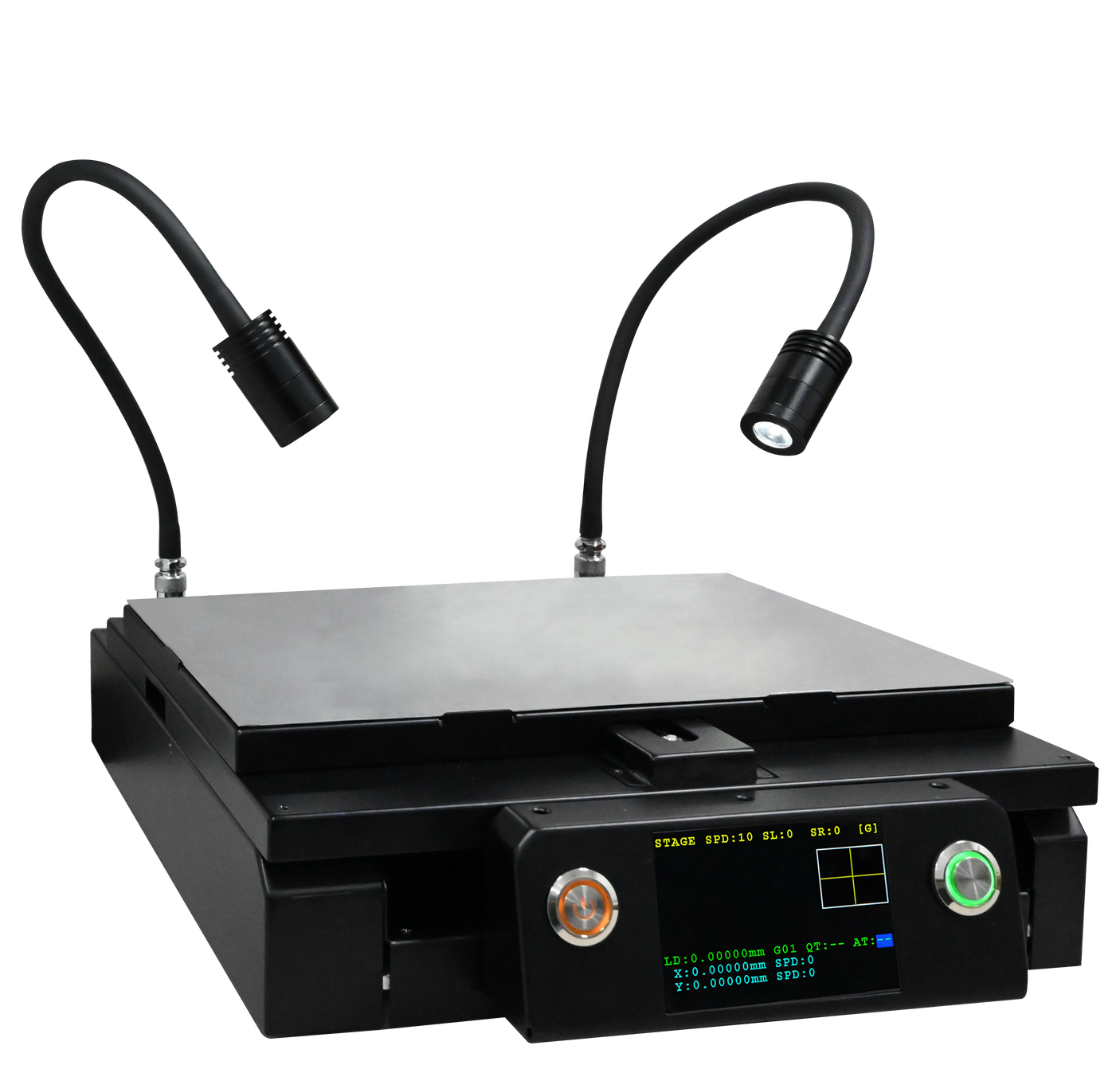

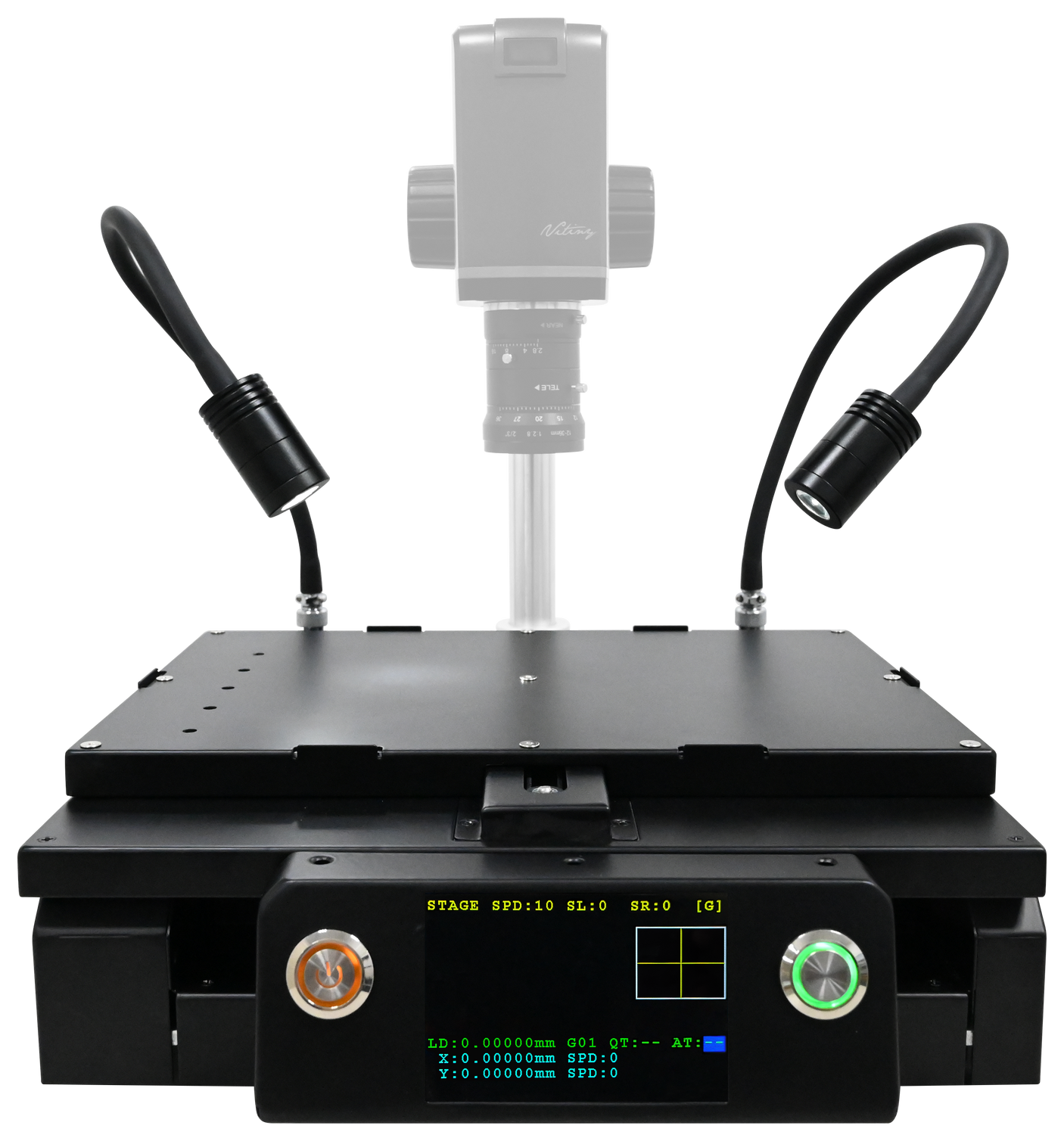

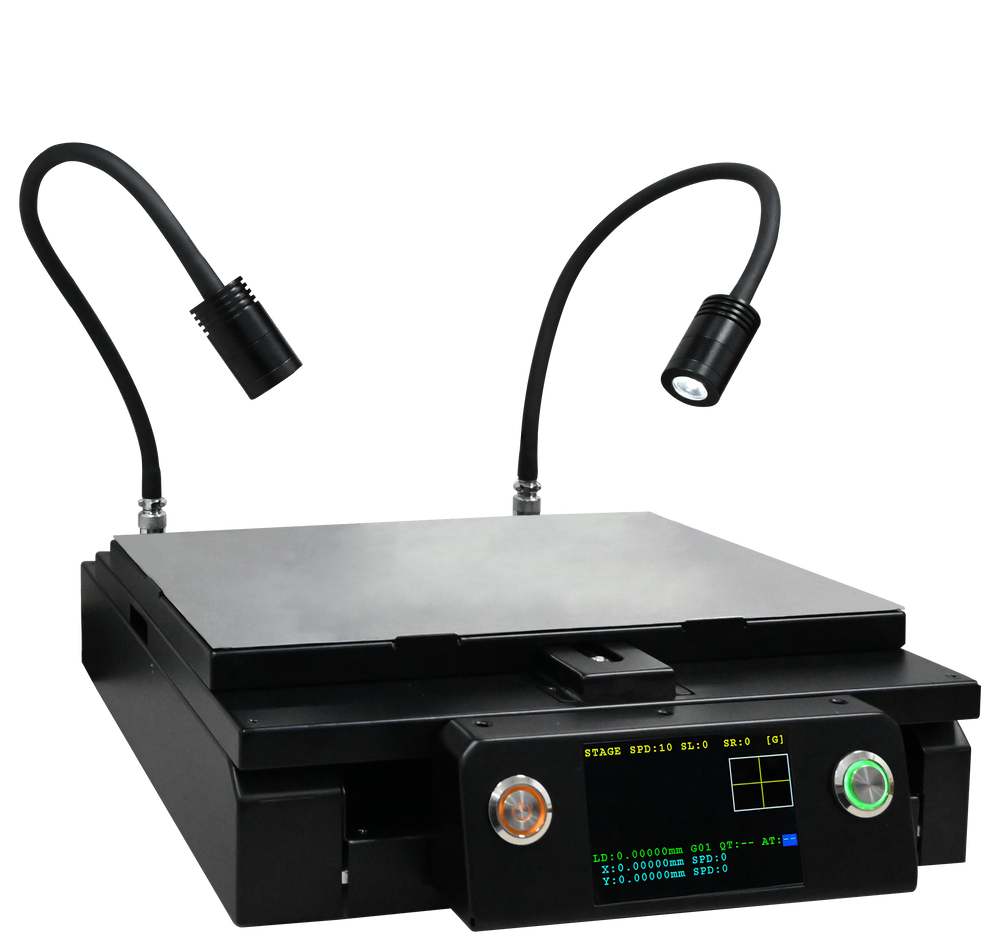

ViTiny MS220-S-1611 XY Motorized Stage

$3,899.98 USD
Shipping calculated at checkout.
$3,899.98

Delivery and Shipping

Products in stock will ship within 2 days of order placement. All orders in the domestic United States over $75 will receive free shipping, while costs for other areas & purchases under $75 will have shipping calculated by distance and weight.

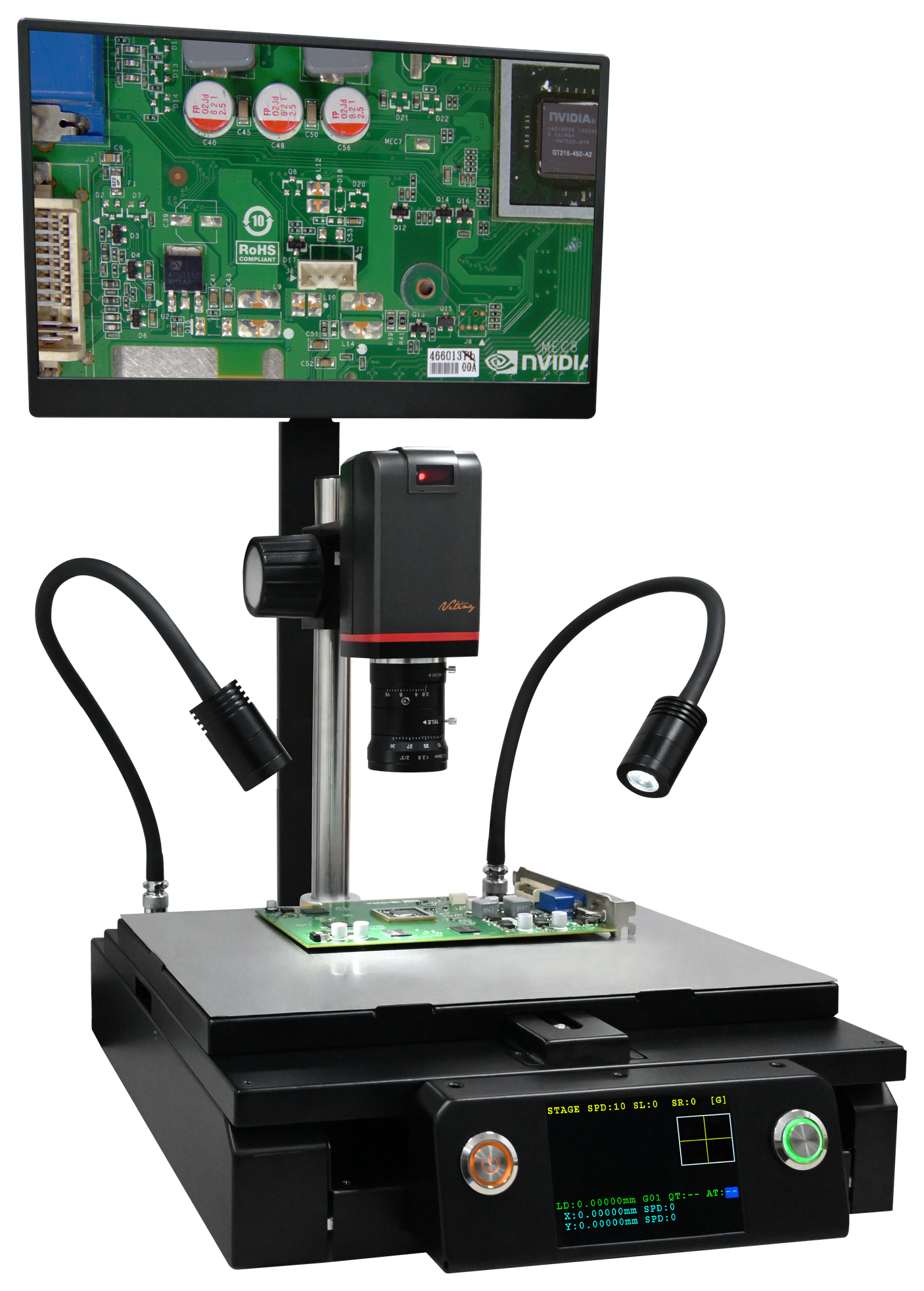

MS220-S-1611 XY Motorized Stage is a scanning inspection method. It can accurately position, record XY coordinates, and perform repeated coordinate movements. Combined with the autofocus system of different models of Vitiny, the speed of the XY platform can be flexibly adjusted to easily detect a large number of samples repeatedly.

MS220 also solves the problem of large-sized samples that are beyond the viewing area of ​​the lens and cannot be measured. By gently sliding the mouse, you can use the coordinate positions of 2 points to calculate the size of the large sample.

Distance, record, and light control are easy to operate through the movement of the mouse.

Software functions:

Positioning Detection

  1. Setting and record coordinate

Record Coordinate Duplication Detection

  1. Repeatable automatic operation of recorded coordinate points
  2. 10 sets of coordinates can be set, each set can contain up to 20 points.
  3. Automatic operation can be set to idle seconds

Measurement Function

  1. Display and record moving distance to the original point
  2. Measure the distance between two points

XY stage technical specs:

  1. Travel Range of X, Y : 160 x 110 mm
  2. X Position Accuracy : ± 2 um
  3. Y Position Accuracy : ± 2 um
  4. X, Y Axis Resolution : 1.25 um
  5. Platform Size : 315 x 210 mm
  6. Loading : 1 kgs
  7. Stand Pole Holder : Φ 25 mm
  8. Side Light : Adjustable Brightness
  9. Adaptor : 12V/ 8A, Length : 260 mm

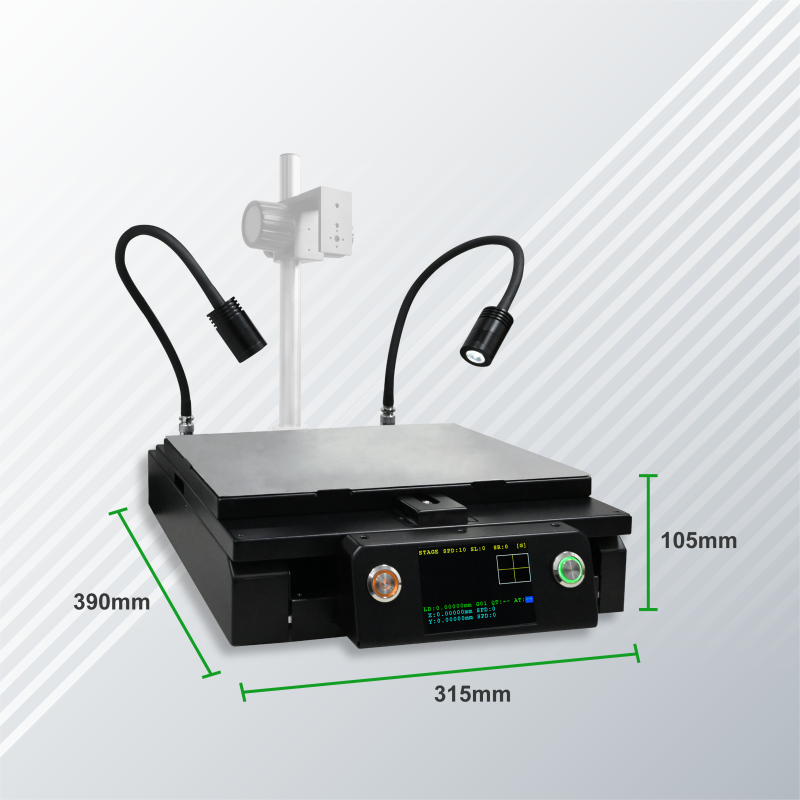

  10. Machine Size : 315(W) x 390(D) x 105(H) mm
  11. Machine Weight : 10 kgs
