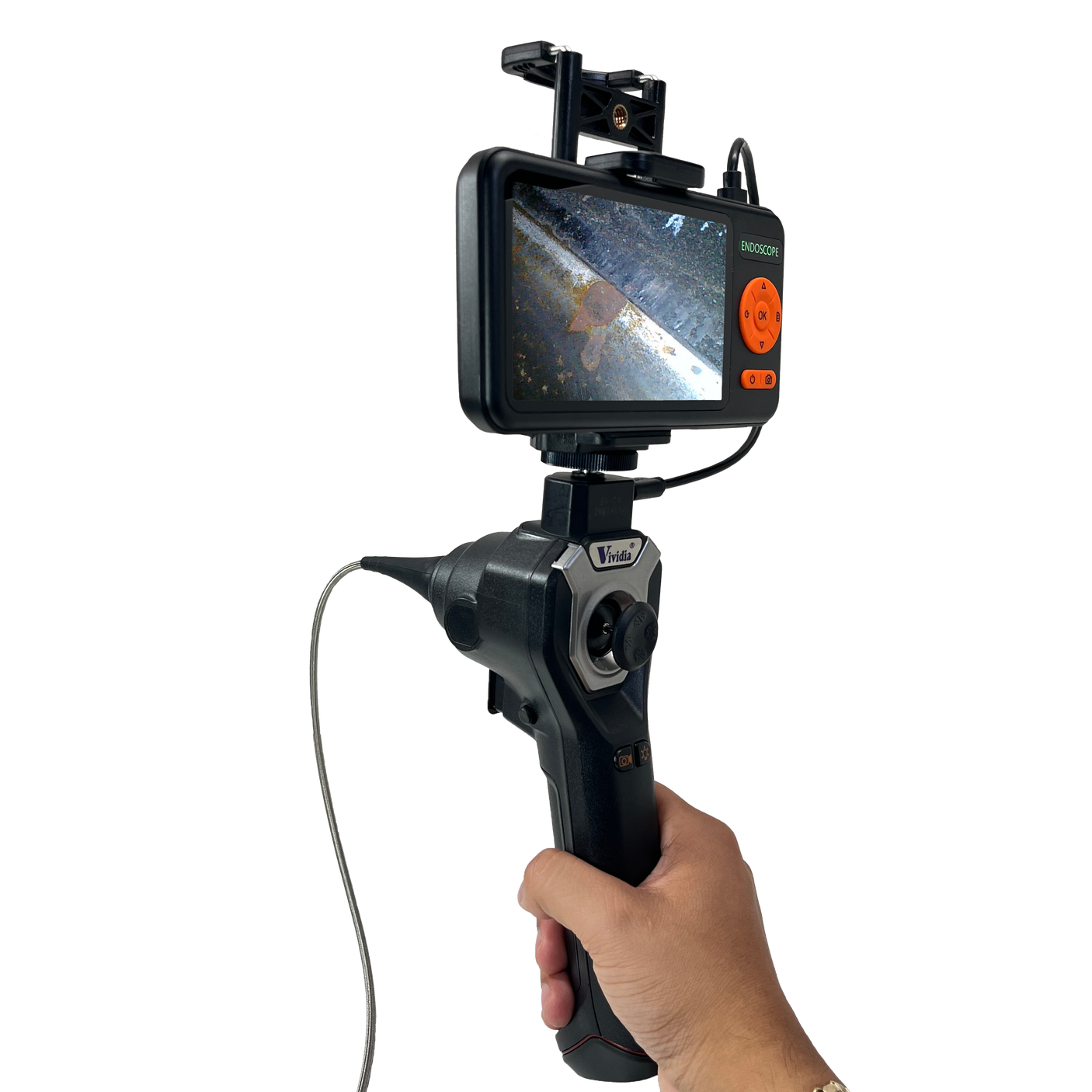

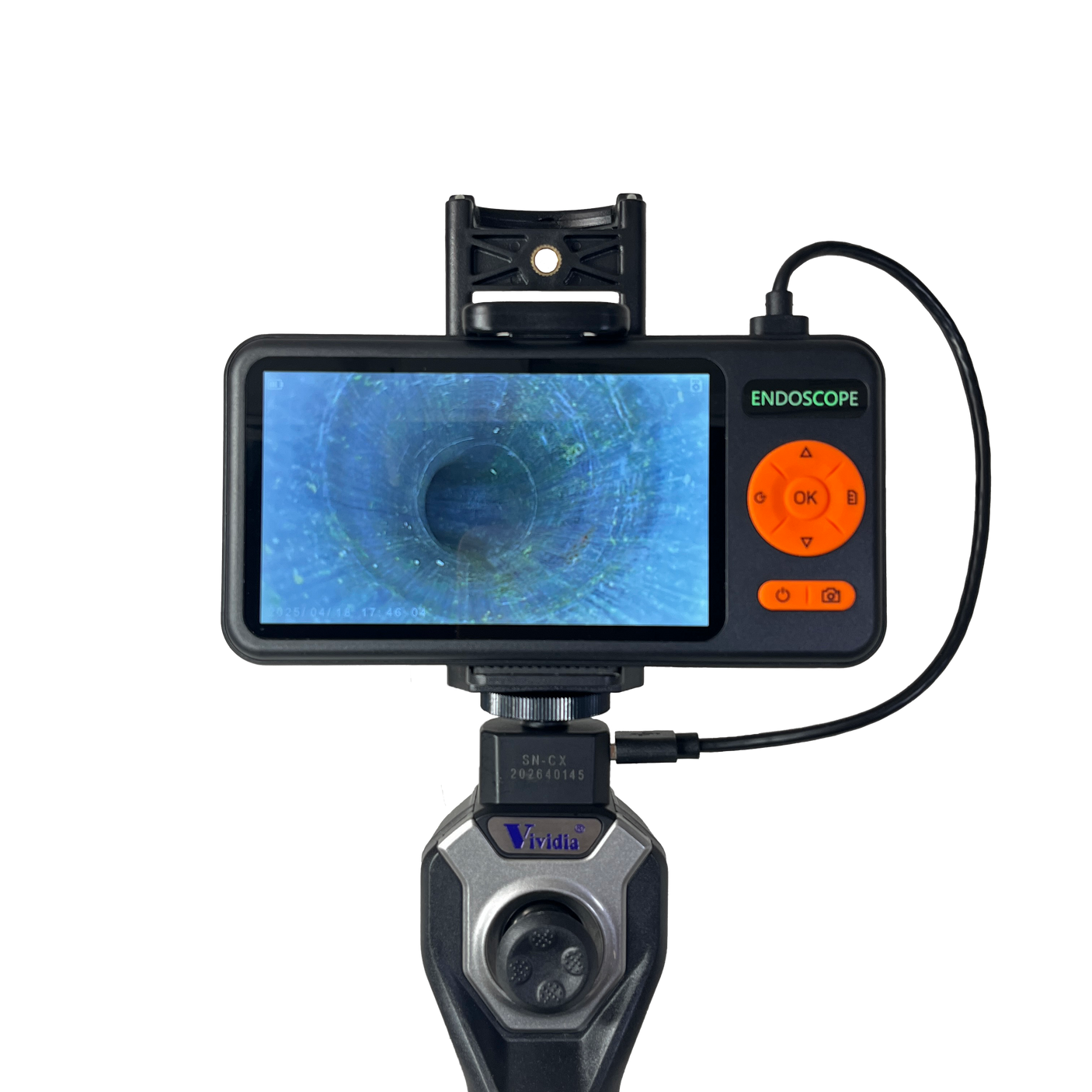

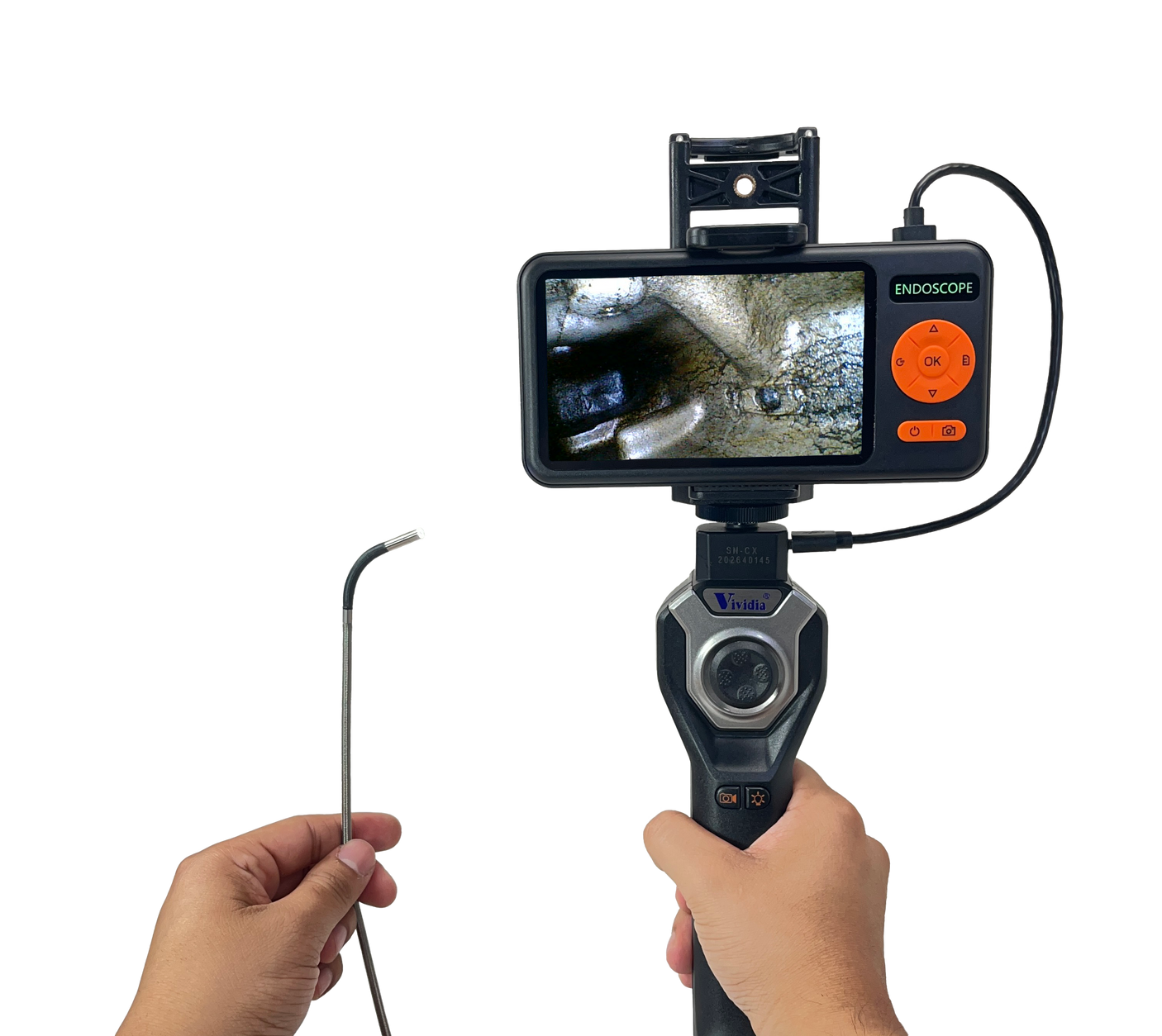

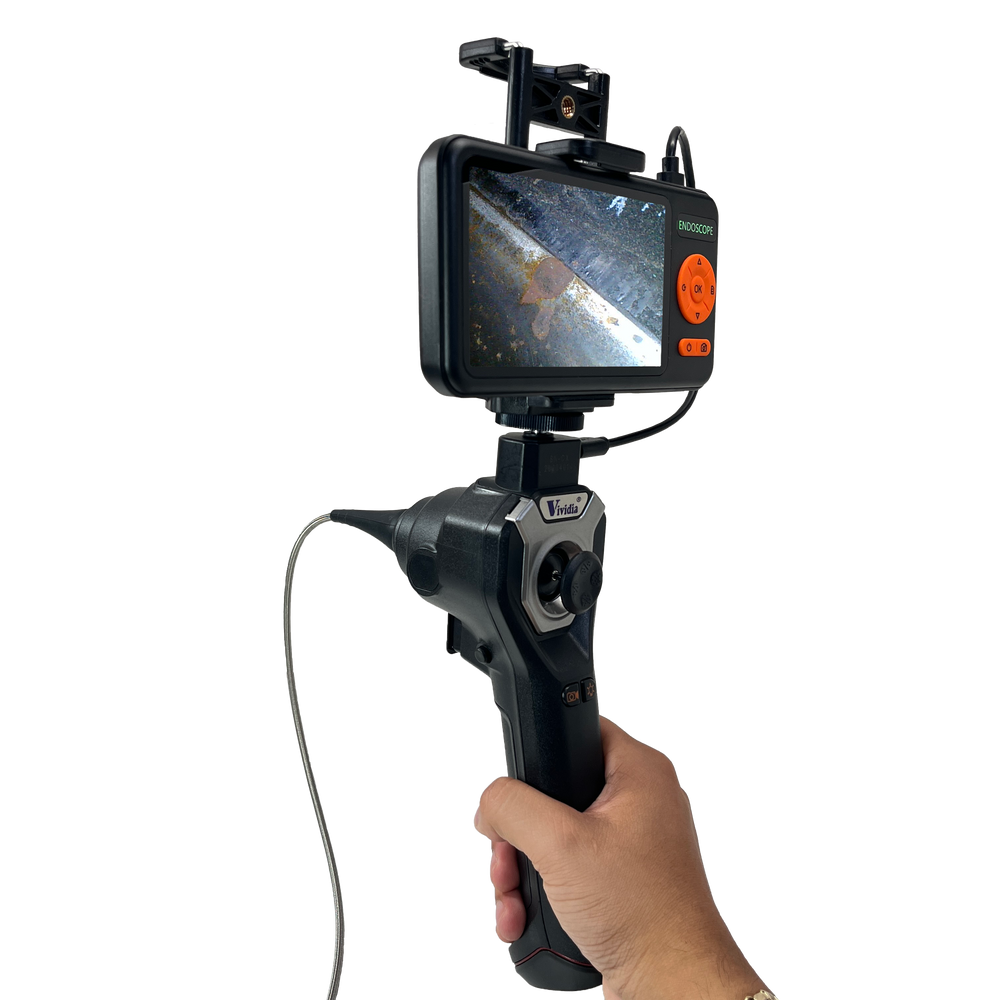

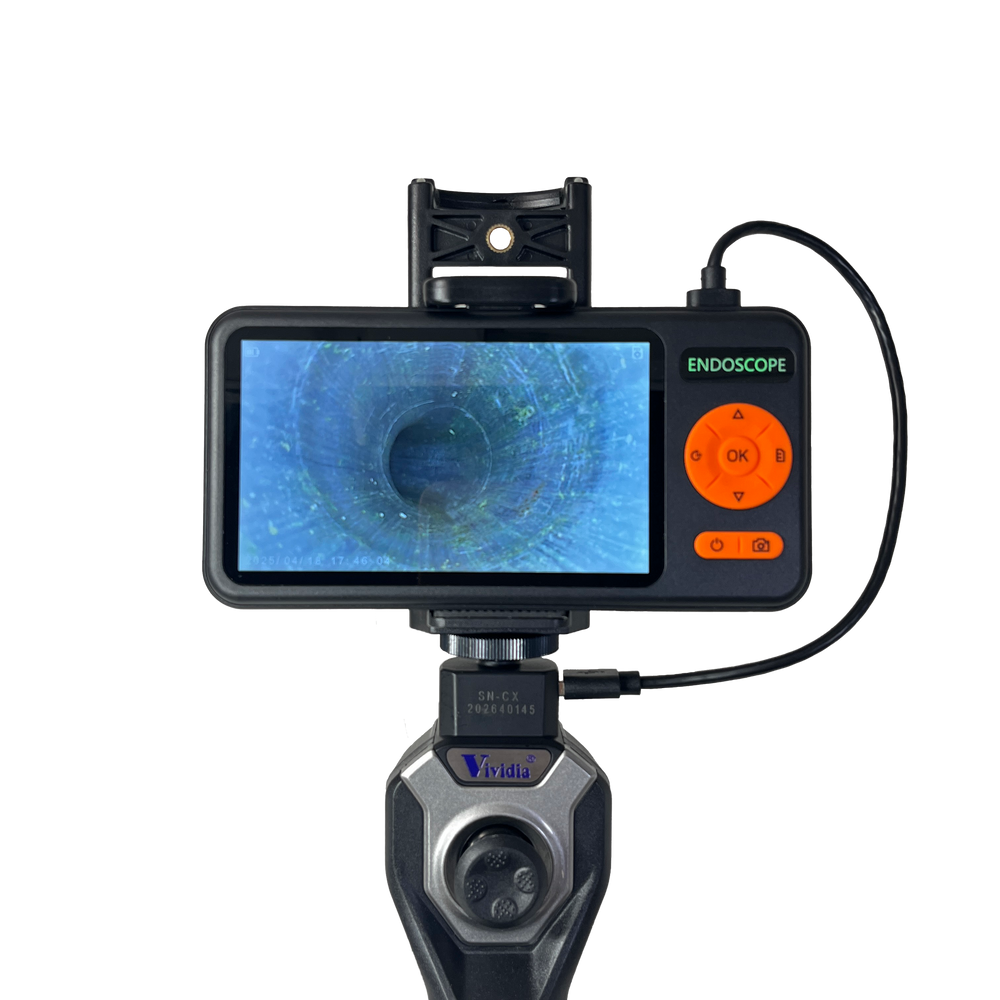

Vividia CX-6010M 6mm Flexible Joystick Monitor Borescope

Note: We updated the CX-6010M, CX-4010M models in early 2026 with a detachable 5" monitor. This makes the whole borescope more versatile, can be used a Windows, Mac, Chromebook, Linux and Android, iOS devices (with a separate adapter), and USB monitors. The probe and the camera head are the same as before.

The Vividia CX-6010M 6mm Flexible Joystick Articulating Borescope is a quality inspection tool suitable for many applications. These include but are not limited to looking into engine cylinders, inside airplane wings, behind instrumental panels and inside brake systems. The Vividia CX-6010M is a fantastic diagnostic inspection camera for auto mechanics and technicians.

Probe types for CX series:

• Flexible soft cable of 1m, 2m and 3m long (CX-6010, CX-6020, CX-6030)
• Semi-rigid gooseneck type probe of 0.90m, 1.5m long (CX-6078, CX-D6590, CX-60150)
• Rigid, straight, stainless steel tube probe (CX-60R40)

Features:

• Detachable 5" LCD Monitor with SD Card Storage
• 360° Joystick articulation, bending >°180 back towards the probe.
• Full HD 1280x720 resolution for clear, vivid images
• Durable tungsten braided mesh probe tube
• Bright, adjustable LED lights
• Trigger-based locking feature
• Rechargeable & replaceable lithium ion battery

* Can be used on Windows, MacOS or ChromeOS without the 5" monitor

Vividia CX series has five models: CX-6010i joystick articulation 6mm / 0.24" 1m long for iPhone iPad Android CX-4010i joystick articulation 4mm / 0.16", 1m long for iPhone iPad Android CX-6010M / CXM-6010 joystick articulation 6mm / 0.24" 1m long 4.5" LCD monitor CX-4010M / CXM-4010 joystick articulation 4mm / 0.16" 1m long 4.5" LCD monitor CXM-8510-28 joystick articulation working channel 8.5mm diameter 2.8mm channel

Features of CX-6010M and CX-4010M borescopes: Joystick articulation, 360 degree all-direction and 180 degree bending back 1280x720 CMOS sensor, 1mp HD resolution camera head 4.5 inch LCD monitor with microSD card to store pictures and videos Metal-mesh layer protected flexible probe Bright LED lights and waterproof IP67 probe head and tube  Locking and unlocking the articulation angle by simple trigger Rechargeable lithium battery Technical Specs of CXM-6010: Model:                                    CX-6010M or CXM-6010 Monitor size:                           4.5 inch LCD SD card:                                 Micro SD, max. 128G Screen resolution:                   1920x1080 Camera head diameter:            6mm / 0.24"  Camera head bending length:   ~ 35mm / 1.38" Camera sensor resolution:        CMOS, 1280x720 Focus range:                           10mm / 0.4" to infinity FOV:                                      120 degree LED lights:                              6 white LED lights; 4 levels brightness Probe length:                          1m / 3.3 ft. Probe tube material:                Wear-resistant metal mesh Articulation type and angles:    Joystick 360 all-around, >180 degree Waterproof (probe only):         Waterproof IP67 Battery built-in:                      Rechargeable lithium, 33500 mAh Working time:                         >3h after full charge Power charging:                      5V/2A, USB-C                         Dimension:                             195 x 57 x 10 mm      Weight:                                  0.6 kg / 1.3 lbs Special features:                     Auto off; artiuclation angle locking
