Oasis Scientific  |  SKU: B-AV-CT7510HT

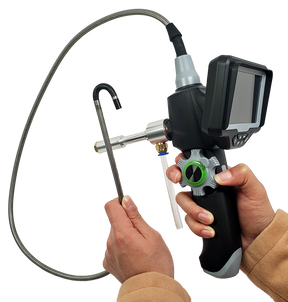

Vividia CT-7510HT LCD/WiFi Flexible High Temperature Two-Way Articulating Inspection Camera Borescope Videoscope with 7.5mm (0.295") Diameter 1.0m Long Waterproof Probe and Air Cooling Channel

$1,999.98 USD
Shipping calculated at checkout.
Probe Length

Delivery and Shipping

Products in stock will ship within 2 days of order placement. All orders in the domestic United States over $75 will receive free shipping, while costs for other areas & purchases under $75 will have shipping calculated by distance and weight.

Vividia CT-7510HT LCD/WiFi Waterproof High Temperature Two-Way Articulating Video Borescope with 4.5" Monitor and 7.5mm Diameter 1 Meter Long Probe:

  • Probe diameter 7.5mm / 0.295", length 1 meter / 3.3 ft with pressured air cooling channel
  • Probe is waterproof IP67 and protected with metal braided layers
  • 2-way articulation with max. bending angle around 150 degree
  • Bright LED lights
  • 4.5" LCD monitor detachable and rechargeable battery
  • Built-in WiFi function for connection to iPhone iPad Android device

Vividia CT-7510HT articulating borescope is a great inspection tool for applications where the environment of high temperature of 250 degree Celsius or 500 degree Fahrenheit is present.

High temperature 2-way articulating video borescope, Model: CT-7510HT

​Important Notice on CT-7510HT high temperature applications:
  • CT-7510HT is designed to be used in high temperature (250 C or less) environments for short period of time (30 min. or less).
  • The compressed cooling air must be used to keep the camera sensor and probe head cool.
  • The maximum compressed air pressure is ~100psi.
  • CT-7510HT is not designed for long time exposure at high temperature.
  • Make sure the cooling air is flowing before you put the probe into high temperature environment. Test and feel the air flow first, then use the probe.
  • The cooling efficiency is very very important to keep the camera head cool. Highly depends on the set-up and cooling operation.





Probe testing in an oven, the detailed testing report below.
ct-7510ht_high_temperature_testing_report.pdf
Download File
For real-world applications, please pay attentions to the following:
  1. The max. temperature ( must be less than 250 C / 500 F
  2. How deep the probe is inserted into the high temp zone
  3. The cooling air flow pressure and flow rate
  4. The cooling air temperature
  5. Take out the probe camera immediately if the thermal noise shows
